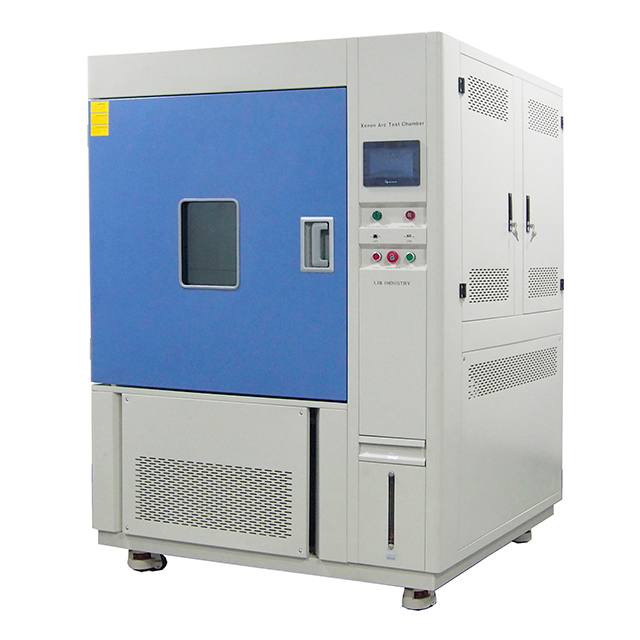

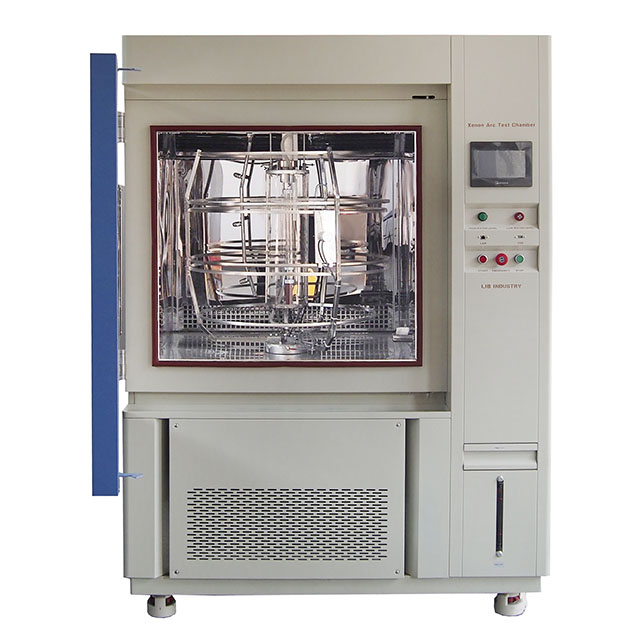

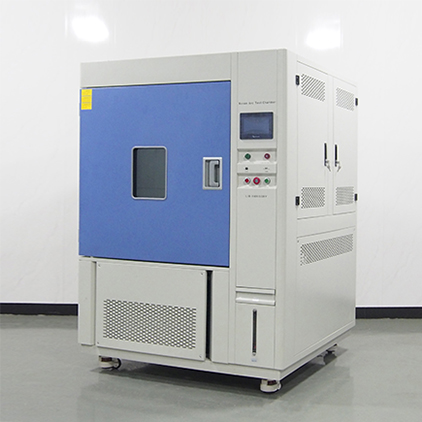

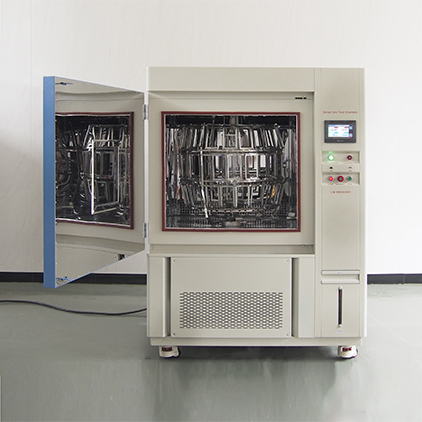

Xenon Weathering Chamber

Xenon arc chambers reproduce weathering damage by sunlight, temperature, humidity and water spray. Xenon weathering test chambers are utilized in textiles, dyes, leather, plastics, paints, coatings, automotive interior parts, electrotechnical products, color building materials. To perform weathering test, color fastness tests, aging test, hardening test, softening test, crack. Accelerated weathering test methods included ISO4892, ASTM G155-1/155-4, ISO 105-B02/B04/B06, ISO11341, AATCC TM16, TM169, , JIS L0843, SAEJ1960/1885, JASOM346, and many others. XL-S-750 xenon weathering chambers can place 42 pieces of specimens, are upgrade to programmable controller and Ethernet access. Their reliable performance and low purchase price make these products very competitive.

Availability:

Quantity:


Inquire Add to Basket

Model: XL-S-750

Product Description

Model	XL-S-750
Internal dimensions	950950850 mm
Overall dimensions	130014201800 mm
Specimen Capacity	42pcs
Specimen holder size	95*200mm
Irradiation Source	1 piece of 4500 W water-cooled Xenon Lamp with inner quartz and outer borosilicate filter
Irradiance Range	35 ~ 150 W/㎡
Bandwidth Measurement	300-420nm
Chamber Temperature Range	Ambient ~100℃±2°C
Black Panel Temperature	BPT 35 ~85℃±2°C
Relative Humidity Range	50~98% R.H±5% RH
Water Spray cycle	1～9999H59M, adjustable
Controller	Programmable color LCD touch screen controller, Multi-language interface, Ethernet , USB
UV Radiometer	Tolerance: ±5%
Heating system	Nichrome heater
Cooling system	Mechanical compression refrigeration system
Refrigerating unit	French TECUMSEH compressor
Humidification system	External isolation, stainless steel surface evaporation humidifier
Air circulation	Centrifugal wind fan
Water supply system	Automatic water supply; Water purification system
Safety device	Humidifier dry-combustion protection; over-temperature protection; over-current protection; Refrigerant high-pressure protection; Water shortage protection, Earth leakage protection;
Interior material	SUS304 stainless steel
Exterior material	Steel Plate with protective coating
Thermal insulation	Polyurethane foam
Observation window	Interior lighting , double-layer thermo stability silicone rubber sealing
Power Supply	AC380V 50HZ
Standard	ISO 105-B02/B04/B06, ISO4892-2, ISO11341. AATCC TM16, TM169, ASTM G155-1/155-4, JIS L0843, SAEJ1960/1885, JASOM346, PV1303, IEC61215, IEC62688

Description

Xenon arc chambers reproduce weathering damage by sunlight, temperature, humidity and water spray. Xenon weathering test chambers are utilized in textiles, dyes, leather, plastics, paints, coatings, automotive interior parts, electrotechnical products, color building materials. To perform weathering test, color fastness tests, aging test, hardening test, softening test, crack. Accelerated weathering test methods included ISO4892, ASTM G155-1/155-4, ISO 105-B02/B04/B06, ISO11341, AATCC TM16, TM169, , JIS L0843, SAEJ1960/1885, JASOM346, and many others.

XL-S-750 xenon weathering chambers can place 42 pieces of specimens, are upgrade to programmable controller and Ethernet access. Their reliable performance and low purchase price make these products very competitive.

Features

4500 W water-cooled Xenon arc lamp system

Total 42 pieces of specimens capacity

Measurement and control of Irradiance: 340nm, 420nm or 300-400 nm, 280-800nm

Measurement and control of Black Panel Temperature( BPT)

Measurement and control of Chamber Temperature

Measurement and control of Chamber relative humidity

Programmable color display touch screen controller

Ethernet & USB

Automatic water spraying system

Build-in water reservoir and automatic water supply

Large viewing window in door
