Model | S-150 | S-250 | S-750 | S-010 | S-016 | S-020 | |||||
Internal dimensions (mm) | 470*590*400 | 640*1000*500 | 750*1100*500 | 1000*1300*600 | 900*1600*720 | 1000*2000*800 | |||||
Overall dimensions (mm) | 620*1400*1050 | 810*1800*1180 | 920*1900*1200 | 1200*2200*1400 | 1300*2500*1600 | 1420*3000*1850 | |||||
Temperature range | Ambient ~60℃ | ||||||||||
Humidity range | 95% ~ 98% RH | ||||||||||
Temperature fluctuations | +/- 0.5 ℃ | ||||||||||
Temperature deviation: | +/- 2.0 ℃ | ||||||||||
Test time | 1~999 hours, settable | ||||||||||
Spray deposition | 1~2ml / 80cm2 · h | ||||||||||
Spray type | Continuous / Periodic | ||||||||||
Temperature Controller | LED display, P.I.D+S.S.R. microcomputer integrated controller | ||||||||||
Temperature sensor | PT100Ω / MV A-class | ||||||||||
Salt fog collected | Fog collector and fog measure cylinder | ||||||||||
salt water filtration | Salt water filter near the suction tubes( Avoid the nozzle blockage) | ||||||||||
Salt water preheating | Saturated air barrel | ||||||||||
Spraying system | Atomizer tower and Spray nozzles (Fog is more fine and uniform distribution) | ||||||||||
Interior /Exterior material | |||||||||||
Standard configuration | Sample bracket / sample holder / spray nozzle / Fog collectors / measure cylinder | ||||||||||
safety device | over-temperature protection, water shortage protection, over current protection, earth leakage protection | ||||||||||
Sealing | Hydrostatic hood seal | ||||||||||
Standard | ISO 3768/3769/3770, DIN50021-75, ASTM B-117, JIS H8502, IEC 68-2-11,IEC68-2-52, MIL-STD-750, ISO 9227 | ||||||||||
Power Supply | 220V 50HZ | 220V 50HZ | AC380V 50HZ | AC380V 50HZ | AC380V 50HZ |
Description

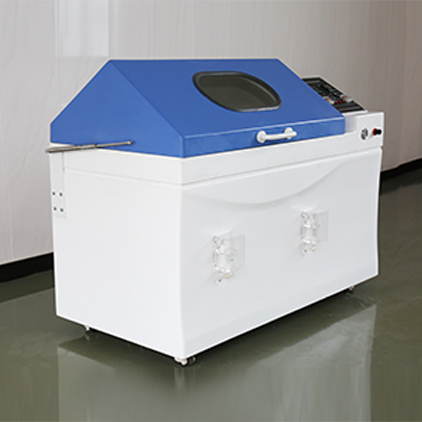

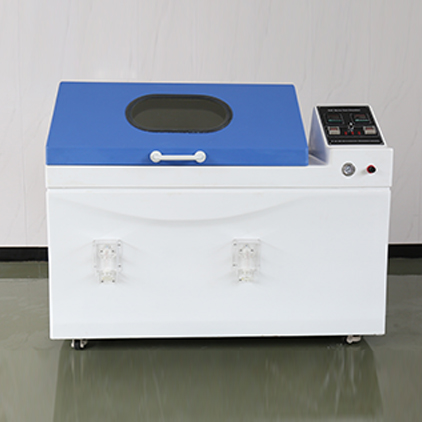

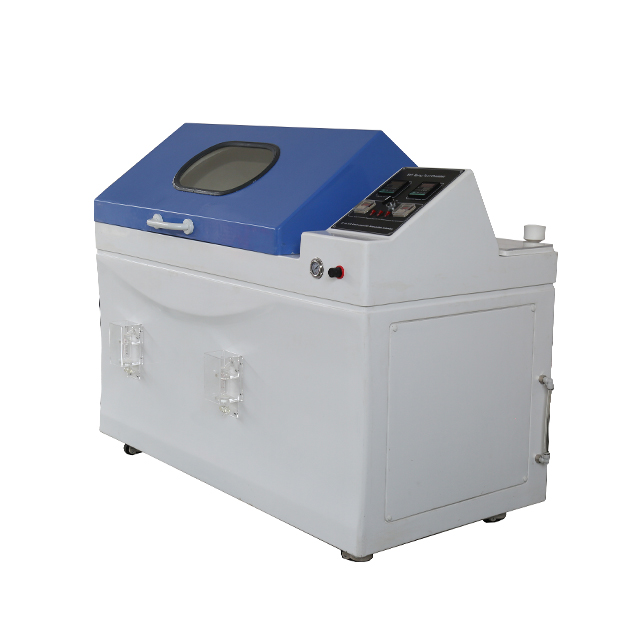

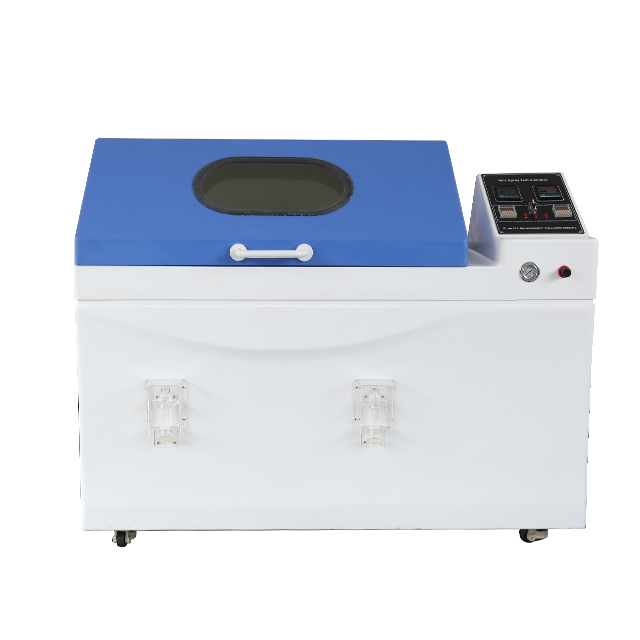

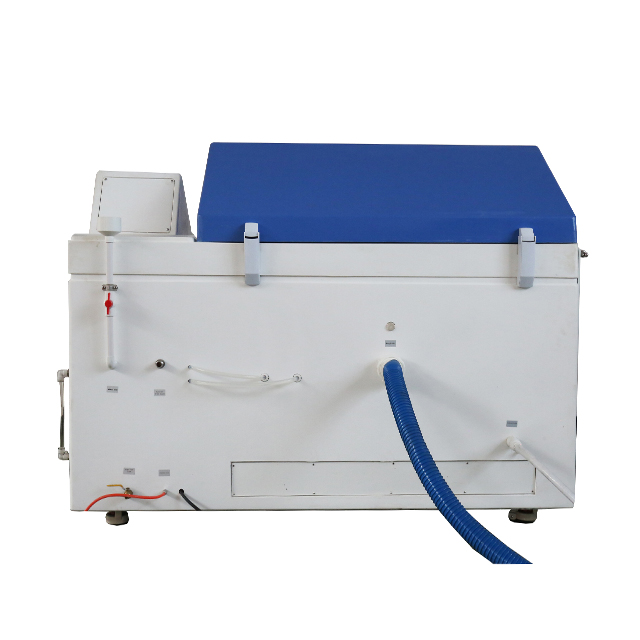

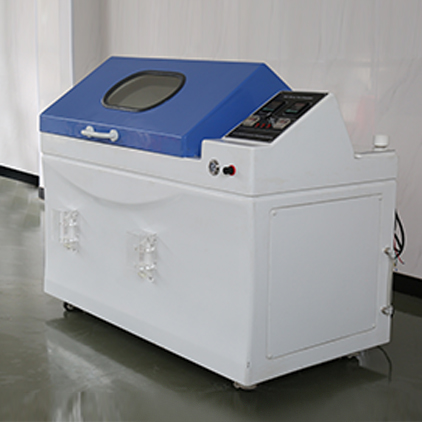

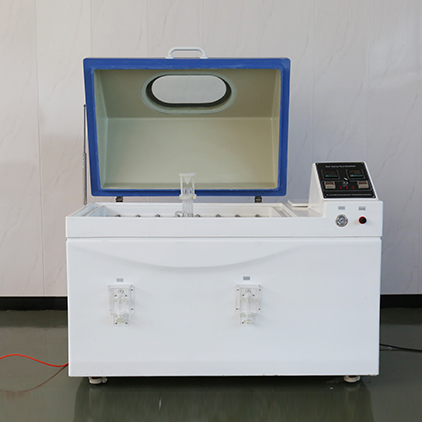

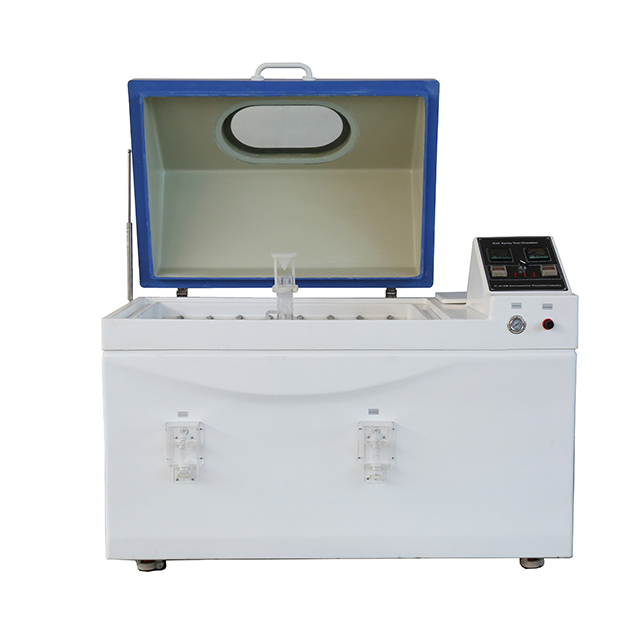

Salt spray test chamber is used to test the anti-corrosion quality of all the materials surfaces of painting, coating, electroplating in condition of salt spray environment. Basic salt spray test chambers meet ASTM, ISO, IEC and other International Standards test methods, capacity available in 108L, 320L, 410L, 780L, 1000L, 1600L capacity.
Reliable performance, quick delivery and good service make this product very competitive.
Features
Temperature control and display unit
Salt fog measure and control
Continuous / periodic salt spraying
Transparent lid to observe samples
Standard sample holders
Casters and holders are standard
Hydrostatic hood seal
Standard and custom.
CE mark, ISO17025 calibration
