| Quantity: | |
|---|---|
Model | TH-50 | TH-80 |
Internal dimension (mm) | 320*350*450 | 400*400*500 |
Overall dimension (mm) | 800*1050*950 | 900×1100×1000 |
Capacity | 50L | 80L |
Temperature range | A:-20℃ ～+150 ℃ | |
Low type | B: -40℃ C:-70℃ D: -86℃ | |
Temperature fluctuations | ± 0.5 ℃ | |
Temperature deviation | ± 2.0 ℃ | |
Heating rate | 3 ℃ / min | |
Cooling rate | 1 ℃ / min | |
| Humidity range | 20% -98%RH | |
| Humidity Deviation | ± 2.5% RH | |
Controller | Programmable color LCD touch screen controller, Ethernet , USB | |
Cooling system | Mechanical compression refrigeration system | |
Safety device | Humidifier dry-combustion protection; over-temperature protection; over-current protection; Refrigerant high-pressure protection; Water shortage protection, Earth leakage protection; | |
Exterior material | Steel Plate with protective coating | |
Interior material | SUS304 stainless steel | |
| Power Supply | 220V 50HZ | |
| Maximum Noise | 65 dBA | |
Description

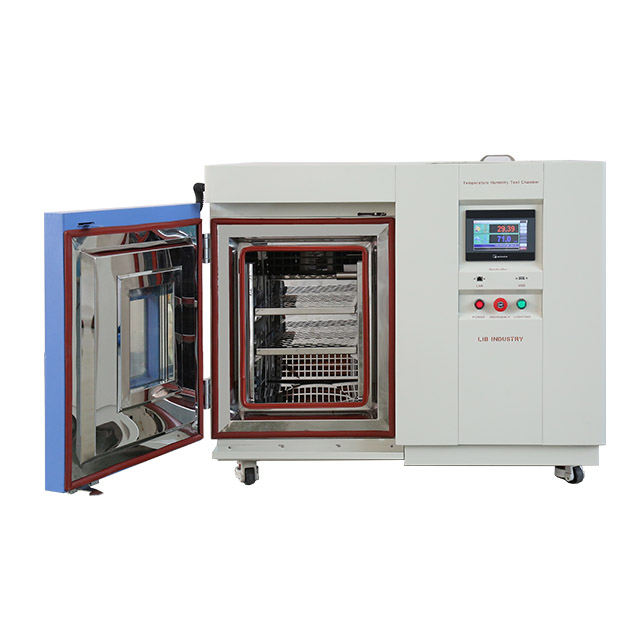

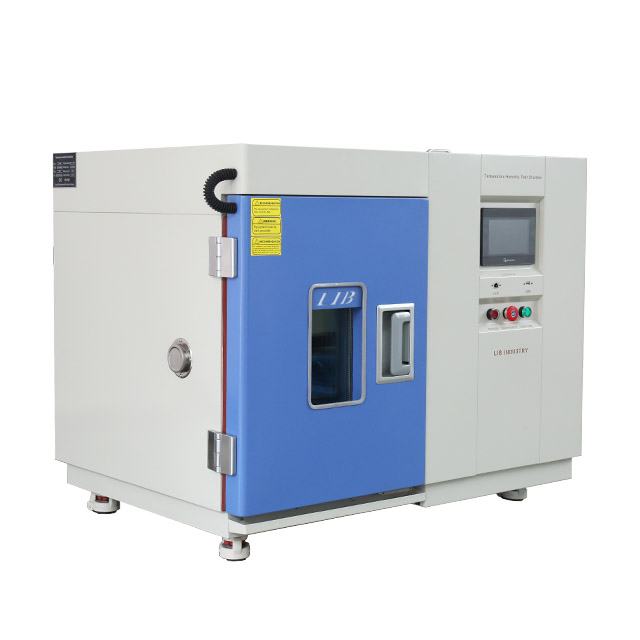

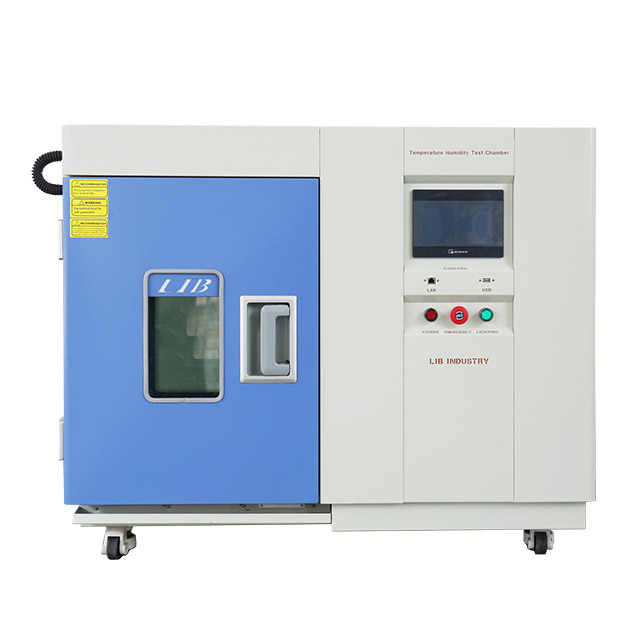

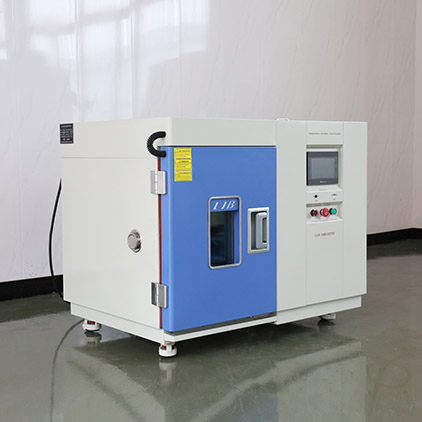

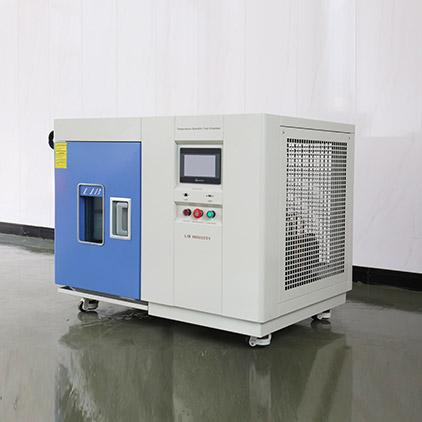

Benchtop Temperature humidity Test Chambers are Small, bench-top test chamber for simulating temperature and humidity environments. Included only temperature, temperature and humidity test chambers. Widely used in electronics, automotive, manufacturing, research and laboratories. Its very good advantages are small, desktop, small footprint, portable, stable performance and Full function.
Features
Small, portable, benchtop design
Wide temperature ranges and volume selection
Reliable performance
Temperature control and display unit
Humidity control and display unit
Programmable color LCD touch screen controller
Multi-language interface
USB and Ethernet
Mechanical compression refrigeration system
Build-in water tank
Adjustable and removable sample shelves
Safety protection system
CE mark, ISO17025 calibration
 |  |
 |  |
Model | TH-50 | TH-80 |
Internal dimension (mm) | 320*350*450 | 400*400*500 |
Overall dimension (mm) | 800*1050*950 | 900×1100×1000 |
Capacity | 50L | 80L |
Temperature range | A:-20℃ ～+150 ℃ | |
Low type | B: -40℃ C:-70℃ D: -86℃ | |
Temperature fluctuations | ± 0.5 ℃ | |
Temperature deviation | ± 2.0 ℃ | |
Heating rate | 3 ℃ / min | |
Cooling rate | 1 ℃ / min | |
| Humidity range | 20% -98%RH | |
| Humidity Deviation | ± 2.5% RH | |
Controller | Programmable color LCD touch screen controller, Ethernet , USB | |
Cooling system | Mechanical compression refrigeration system | |
Safety device | Humidifier dry-combustion protection; over-temperature protection; over-current protection; Refrigerant high-pressure protection; Water shortage protection, Earth leakage protection; | |
Exterior material | Steel Plate with protective coating | |
Interior material | SUS304 stainless steel | |
| Power Supply | 220V 50HZ | |
| Maximum Noise | 65 dBA | |
Description
Benchtop Temperature humidity Test Chambers are Small, bench-top test chamber for simulating temperature and humidity environments. Included only temperature, temperature and humidity test chambers. Widely used in electronics, automotive, manufacturing, research and laboratories. Its very good advantages are small, desktop, small footprint, portable, stable performance and Full function.
Features
Small, portable, benchtop design
Wide temperature ranges and volume selection
Reliable performance
Temperature control and display unit
Humidity control and display unit
Programmable color LCD touch screen controller
Multi-language interface
USB and Ethernet
Mechanical compression refrigeration system
Build-in water tank
Adjustable and removable sample shelves
Safety protection system
CE mark, ISO17025 calibration
 |  |
 |  |
