TS-340 | |||||
Inner dimensions of test room (mm) | 300*300*250 | 450*450*360 | 650*650*500 | 850*850*700 | |
Volume of test room (mm) | 22L | 72L | 211L | 505L | |
Load of test room | 20kg | 30kg | 50kg | 60kg | |
Overall dimensions(mm) | 1560*870*1545 | 1710*1020*1845 | 1910*1220*2265 | 2110*1420*2665 | |
Pre-heat room
| Upper limit preheat temperature | +220℃ | |||
Heating time | Ambient temperature to ~ + 200℃, within in 30 minutes. | ||||
Pre-cool room | Lower limit pre-cool temperature | -75℃ | |||
Cooling time | Ambient temperature to ~ -70℃, within in 30 minutes | ||||
Test room | High temperature exposure range | Ambient temperature +20 to +200°C | |||
Low temperature exposure range | –65 to -5°C | ||||
Recovery time | Within 15 minutes | ||||
Temperature fluctuation | ≤±0.5℃ | ||||
Temperature deviation | ≤±3 ℃ | ||||
Controller | Programmable color LCD touch screen controller | ||||
Cooling system | Mechanical compression refrigeration system | ||||
Refrigerating unit | French TECUMSEH compressor | ||||
Refrigerant | R404A, R23 | ||||
Air circulation | Centrifugal wind fan | ||||
Safety device | Over-temperature protection; over-current protection; Refrigerant high-pressure protection; Earth leakage protection; | ||||
Exterior material | Steel Plate with protective coating | ||||
Interior material | SUS304 stainless steel | ||||
Thermal insulation | Polyurethane foam | ||||
Observation window | Interior lighting , double-layer thermo stability silicone rubber sealing | ||||
Standard configuration | 1 Cable hole (Φ 50,) with plug; 2 shelves | ||||
Power Supply | 380V 50HZ | ||||
Environmental conditional | 5℃～+40 ℃ ≤85% RH | ||||
Description

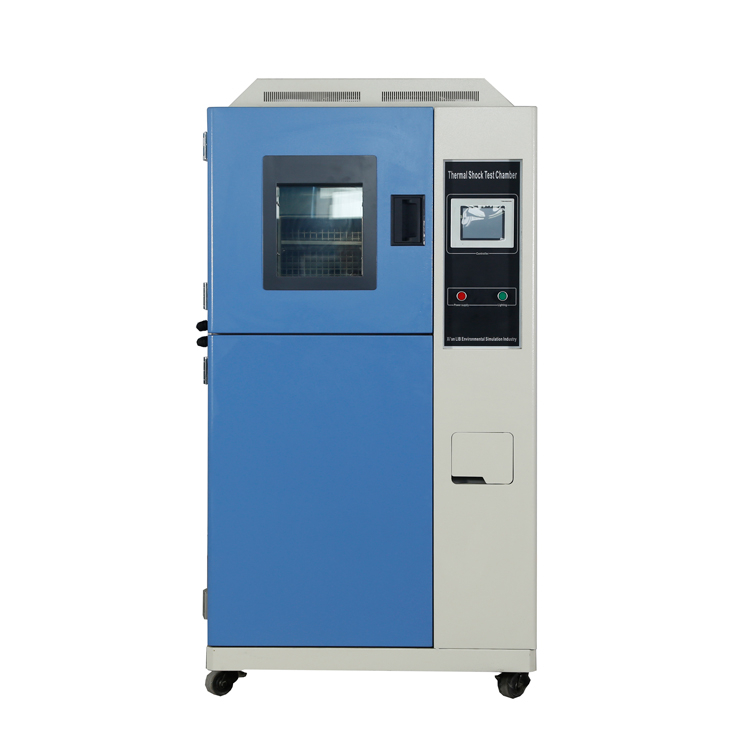

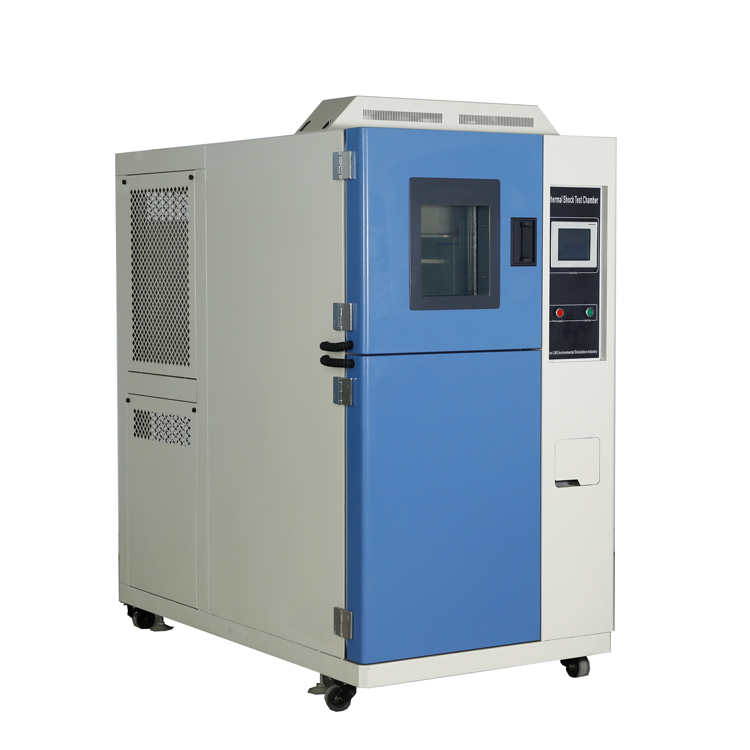

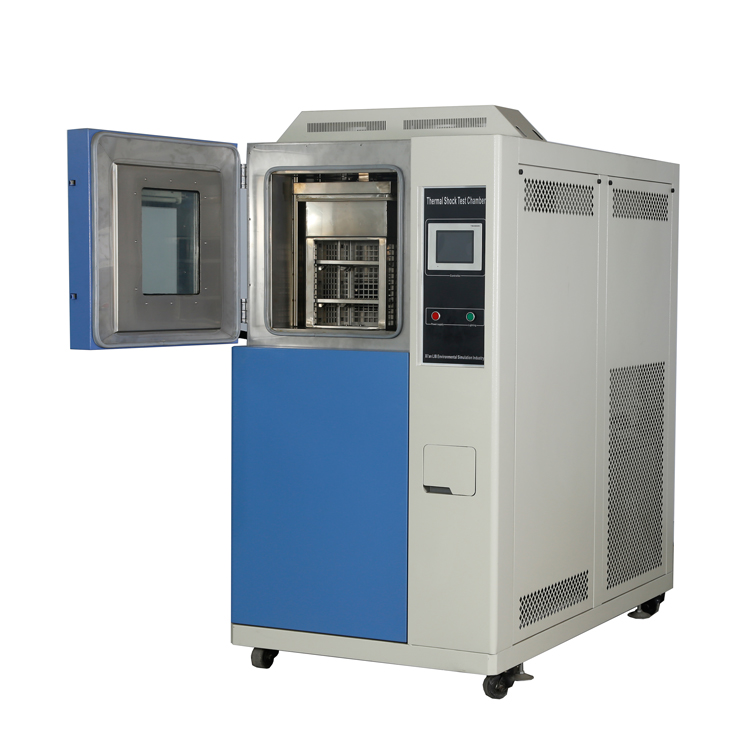

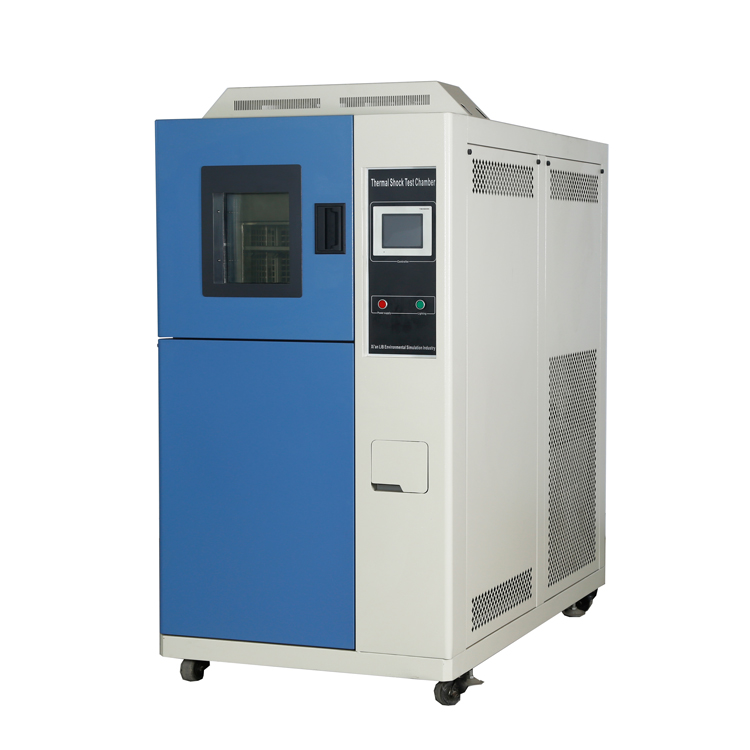

2TS hot cold thermal shock test chamber is available in small capacity and large capacity to meet different testing requirements. The specimen automatic transferred from cold chamber to hot chamber by basket.The basket slides vertically and smoothly through rails, to make the specimen is exposed to the two chambers.
Thermal shock test chamber has upgraded to touch-screen controller with Ethernet, you are easy to operate over network.
Features
Smooth sample elevator transfer between cold chamber to hot chambers
Temperature recovery time less than 15 minutes
Programmable color LCD touch screen controller
Mechanical compression refrigeration system
Casters, shelf, and cable port are standard
Lamp inside of chamber
Ethernet and USB(option)
Large viewing window
Adjustable and removable sample shelves
Safety protection system
CE mark, ISO17025 calibration
 |  |
 |
|
