Model | TH-100 | TH-225 | TH-500 | TH-800 | TH-1000 | ||||
400*500*500 | 500*600*750 | 700*800*900 | 800*1000*1000 | 1000*1000*1000 | |||||
860*1050*1620 | 960*1150*1860 | 1180*1350*2010 | 1280*1550*2110 | 1500*1550*2110 | |||||
Capacity | 100L | 225L | 500L | 800L | 1000L | ||||
Temperature range | A : -20℃ ~ +150 ℃ B : -40℃ ~ +150 ℃ C: -60℃ ~ +150 ℃ | ||||||||
Humidity range | 20% ~ 98% RH | ||||||||
Temperature fluctuations | ± 0.5 ℃ | ||||||||
Temperature deviation | ± 2.0 ℃ | ||||||||
Humidity deviation | ± 2.5% RH | ||||||||
Heating rate | 3 ℃ / min | ||||||||
Cooling rate | 1 ℃ / min | ||||||||
Controller | Programmable color LCD touch screen controller, Multi-language interface, Ethernet , USB | ||||||||
Temperature Sensor | PTR Platinum Resistance PT100Ω/MV A-class | ||||||||
Humidity sensor | Dry and wet bulb sensor | ||||||||
Heater | Nichrome heater | ||||||||
Cooling system | Mechanical compression refrigeration system | ||||||||
Refrigerating unit | French TECUMSEH compressor | ||||||||
Refrigerant | R404A, R23 | ||||||||
Humidifier | External isolation, stainless steel surface evaporation humidifier | ||||||||
Dehumidification system | Evaporator | ||||||||
Air circulation | Centrifugal wind fan | ||||||||
Water supply system | Automatic water supply; Water purification system | ||||||||
Safety device
| Humidifier dry-combustion protection; over-temperature protection; over-current protection; Refrigerant high-pressure protection; Water shortage protection, Earth leakage protection; | ||||||||
Exterior material | Steel Plate with protective coating | ||||||||
Interior material | SUS304 stainless steel | ||||||||
Thermal insulation | Polyurethane foam | ||||||||
Observation window | Interior lighting , double-layer thermo stability silicone rubber sealing | ||||||||
Standard configuration | 1 Cable hole (Φ 50,) with plug; 2 shelves | ||||||||
Power Supply | AC 380V 50Hz/60Hz | ||||||||
Environmental conditional | 5℃~+40 ℃ ≤85% RH |
Description

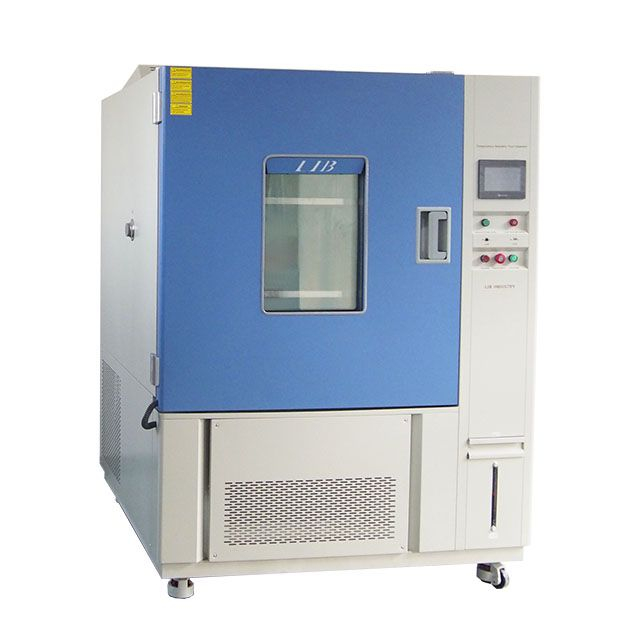

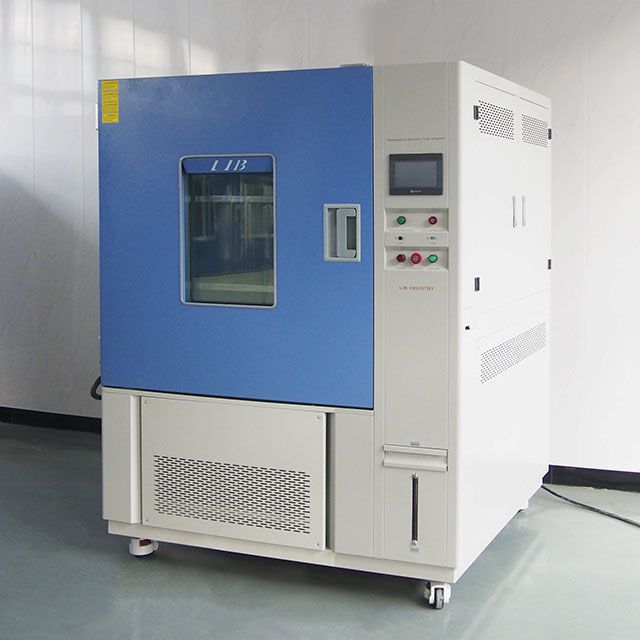

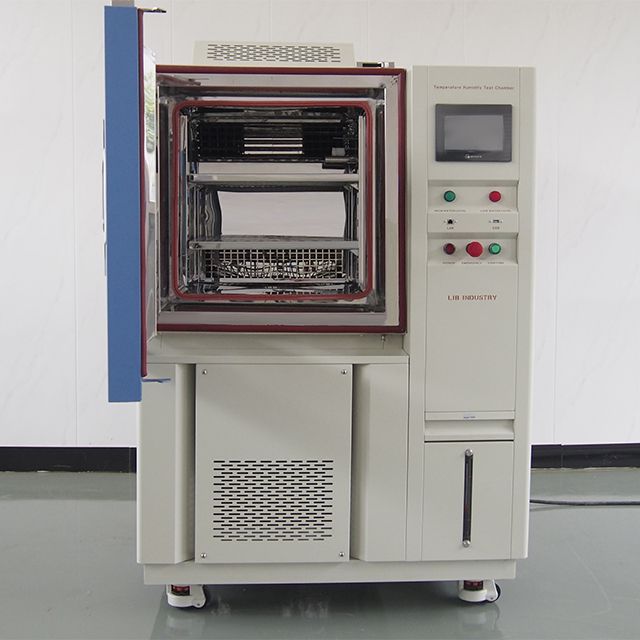

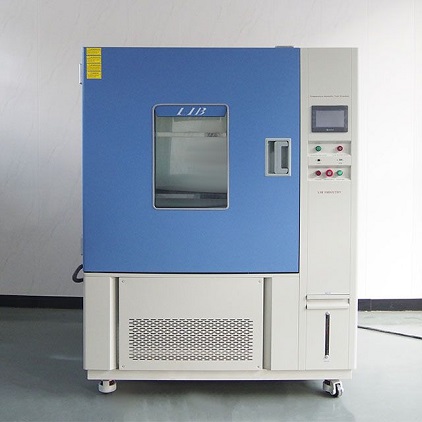

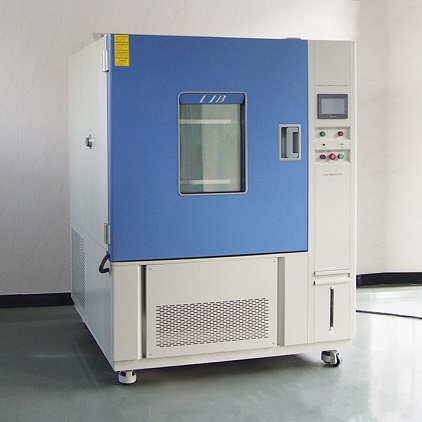

Supply a large range of standard and custom temperature and humidity test chambers to suit many types of environmental test conditions. Our climate and humidity test chambers are available in a variety of sizes and configurations, ranging in size from 50Ltier to 3000Liter, including benchtops, floor type and walk-in. Floor types have more than 53 models to achieve various tests.
Features
Low temperature: -20℃/-40℃/-60℃/-70℃/-86℃
39+ models for different tests
50L/80L/100/225L/500/1000/1500L
Wide temperature ranges and volume selection
Reliable performance
Temperature control and display unit
Humidity control and display unit
Programmable color LCD touch screen controller
Multi-language interface
USB and Ethernet
Casters, shelf, and cable port are standard
Adjustable and removable sample shelves
Safety protection system
CE mark, ISO17025 calibration
