| Quantity: | |
|---|---|

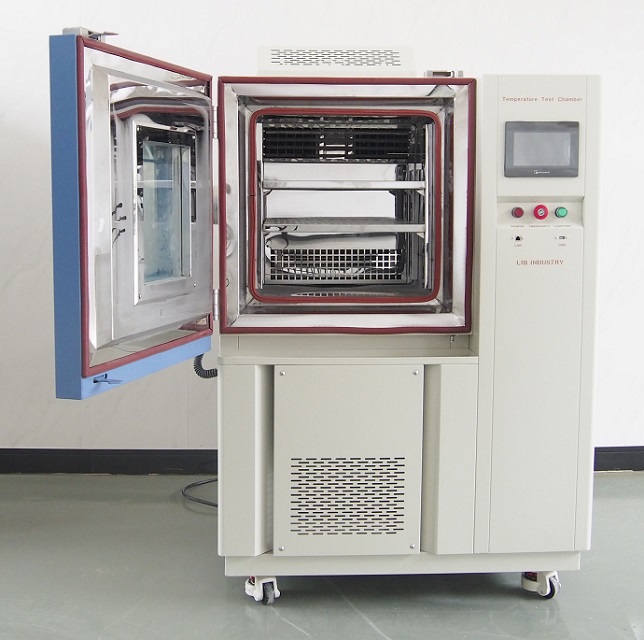

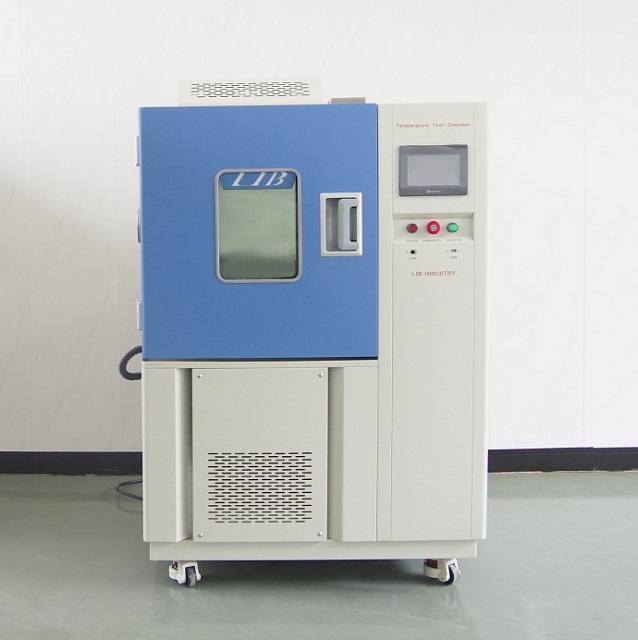

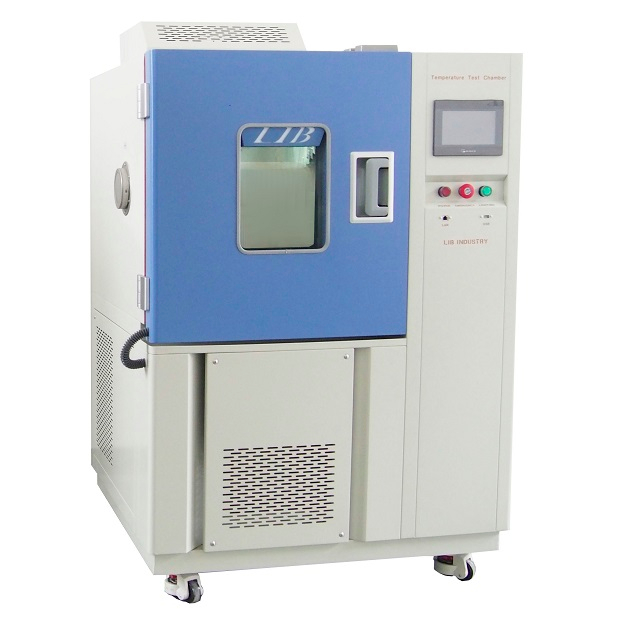

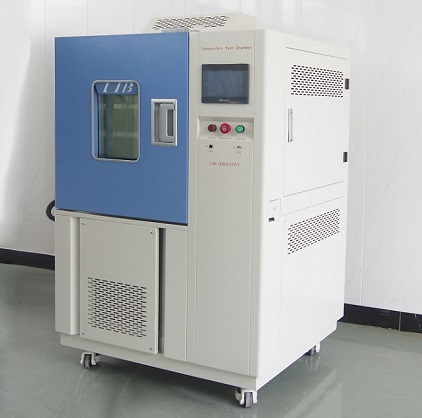

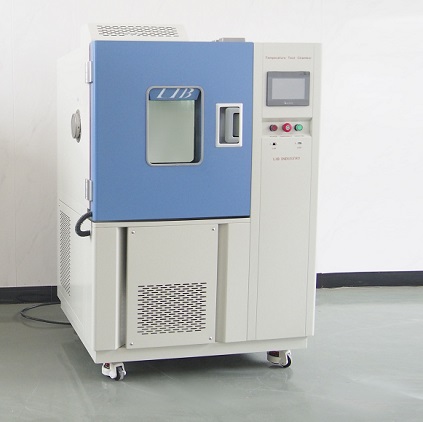

| Model | TK10-220 |
| Internal Dimension (mm) | 500*600*750 |
| Overall Dimension (mm) | 960*1150*1860 |
| Temperature Range (℃) | -70℃ ～+150 ℃ |
| Cooling Rate | 10℃/min （15℃/min） |
| Heating rate | 10℃/min （15℃/min） |
| Temperature Fluctuations | ± 0.5 ℃ |
| Temperature deviation | ± 2.0 ℃ |
| Interior Volume | 220 liters |
| Controller | Programmable color LCD touch screen controller, Multi-language interface, Ethernet , USB |
| Cooling System | Mechanical compression refrigeration system |
| Exterior Material | Steel Plate with protective coating |
| Interior Material | SUS304 stainless steel |
| Power Supply | 380V |
| Maximum Noise | 65 dBA |
Description
Over 29 different models let you choose size, configuration and performance to suit many types of environmental test conditions. Temperature change rates from 1 to 15°C/min.Low temperature available: A: -20℃, B: -40℃, C: -70℃ , D: -86℃.E:-200℃( liquid nitrogen refrigeration.
Included are ultra low temperature test chamber, fast temperature change rate chambers (15℃/min) and liquid nitrogen refrigeration test chamber.
To perform cold resistance test, thermal cycling test, ultra low temperature test, high temperature test, storage condition, and calibration function.
Features
Wide temperature ranges and volume selection
Temperature change reate 10℃/min （15℃/min）
Reliable performance
Temperature control and display unit
Programmable color LCD touch screen controller
Multi-language interface
USB and Ethernet
Mechanical compression refrigeration system
Casters, shelf, and cable port are standard
Adjustable and removable sample shelves
Safety protection system
CE mark, ISO17025 calibration
 |  |
 |  |
