Availability: | |
---|---|
Quantity: | |
Model | R-800C | R-1200C |
Internal dimensions (mm) | 800*800*800 | 1200*1200*1200 |
Overall dimensions (mm) | 1020*1360*1560 | 1450*1450*2000 |
Oscillating tube radius | 400mm | 600mm |
Spraying hole diameter | φ0.4mm | |
Hole spacing | 50 mm | |
Swing angle of oscillating tube | 0 to ±180° ( adjustable) | |
Turntable rotation speed | 1r/min, or steeples speed regulating (optional) | |
Controller | Programmable color LCD touch screen controller, Multi-language interface, Ethernet , USB | |
Water pressure control | Flow meter | |
Observation window | Large viewing window with wiper | |
Water supply system | Storage water tank, booster pump, Automatic water supply, Water purification system, Water saving | |
Safety protection device | Electric leakage, short circuit, motor overheating, over-current protection | |
Exterior material | Steel Plate with protective coating | |
Interior material | SUS304 stainless steel | |
Power | AC380V 50HZ | |
Standard | IEC 60529 |
Description

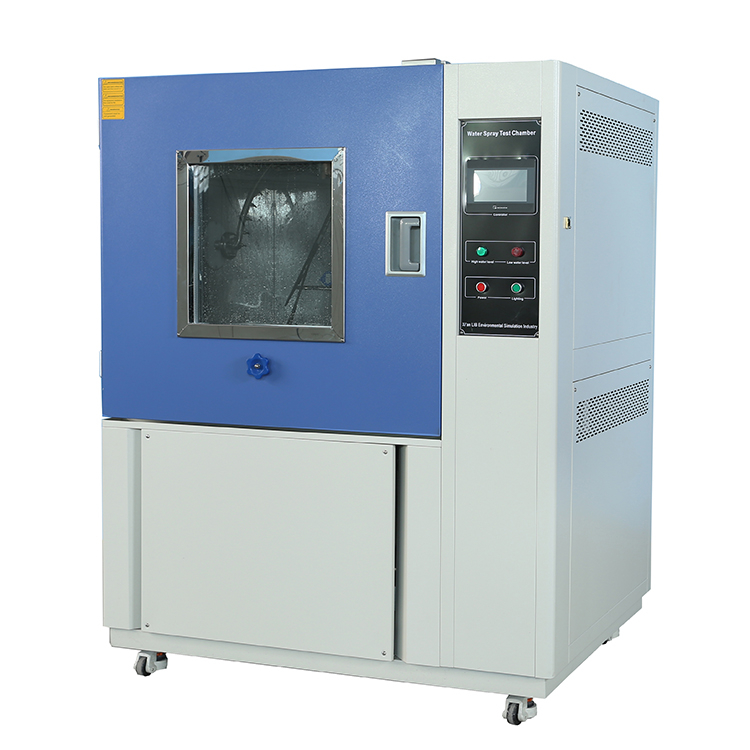

IPX1 IPX2 IPX3 IPX4 Water spray test chambers can perform tests in accordance with IEC60529, and IPX1 IPX2 IPX3 IPX4 protection code.The chambers built with the water tightness of sealed components such as head lamp, Power connector. Waterproof power connector in the test room can easily supply electricity to the specimens.

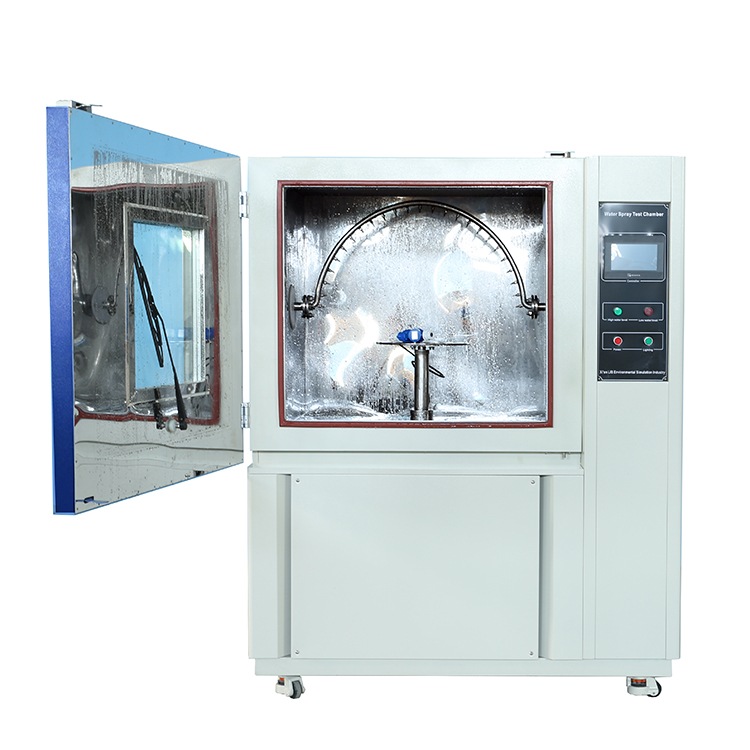

The water spray Chamber built with a water re-circulation system that reduced water use and a series of water pipes. Incorporated rotating turntable can promote even spray of water over the surface of the products under testing. Automatic water supply ensures adequate supply of water and automatic testing. All models are upgrade to programmable controller and Ethernet access that provides simple operation and control. Various size and configuration to suit many types of test conditions.
Features
Capacity of 729 liters and 2700 liters
Protection against drip, spraying and splashing water
Control and adjust water flow
Eliminates water consumption by circulation unit
Waterproof power connector in the test room
Automatic water supply
Programmable color display touch screen controller
USB and Ethernet
A viewing window with wiper
Internal illumination in test room
Safety protection system
CE mark, ISO17025 calibration
