Model | R56-800C |
Workroom dimension (mm) | 800*800*800 |
External dimension (mm) | 950*3150*1800 |
Diameter of turntable (mm) | 600 |
Water flow rate | IPX5: 12.5L/min ±5% ; IPX6: 100L/min ±5% |
Water tank size | 450*250*450 D*W*H |
Nozzle Internal Diameter | IPX5 nozzle Dia. 6.3mm, IPX6 nozzle Dia. 12.5mm |
Water pressure control | Flow meter |
Observation window | Large viewing window with wiper |
Water supply system | Storage water tank, Booster pump, Automatic water supply, Water purification system |
Exterior material | Steel Plate with protective coating |
Interior material | SUS304 stainless steel |
Power supply | 380V 50HZ |
Description

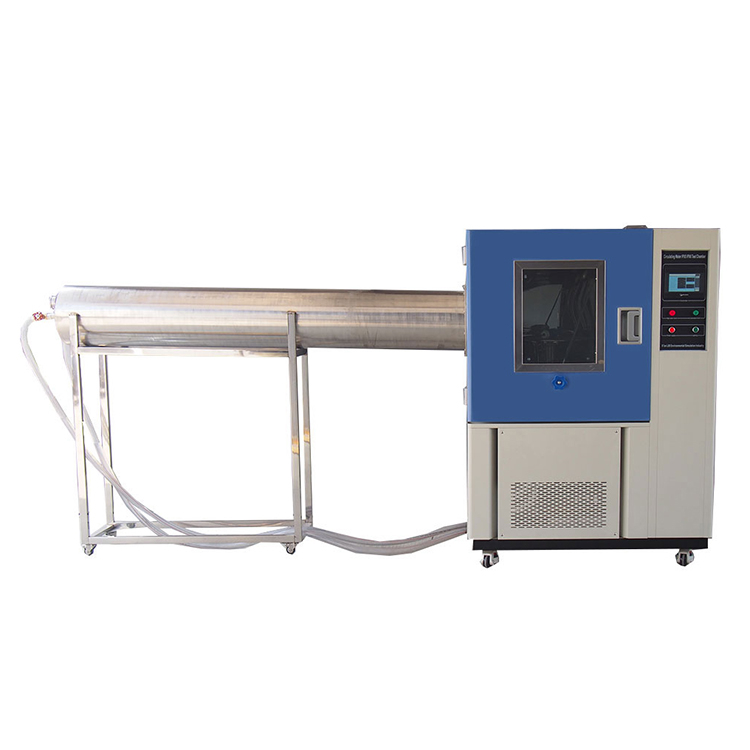

IPX5 IPX6 Water Jetting Test Chamber is applied to test the watertightness of enclosures of automotive parts, outdoor lamps and electronics parts.
The chambers built with the water tightness of sealed components such as head lamp, Power connector. Waterproof power connector in the test room can easily supply electricity to the specimens.
IPX5 and IPX6 functions on one test chamber,make testing convenient and cost-effective.
Features
Capacity of 1000 liters and can be customized
Test methods included IPX5 IPX6 protection code
Water flow rate 12.5L/min for IPX5, 100L/ for IPX6
Control and adjust water flow
Waterproof power connector in the test room
Automatic water supply
Programmable color display touch screen controller
USB and Ethernet
A viewing window with wiper
Internal illumination in test room
Safety protection system
CE mark, ISO17025 calibration
