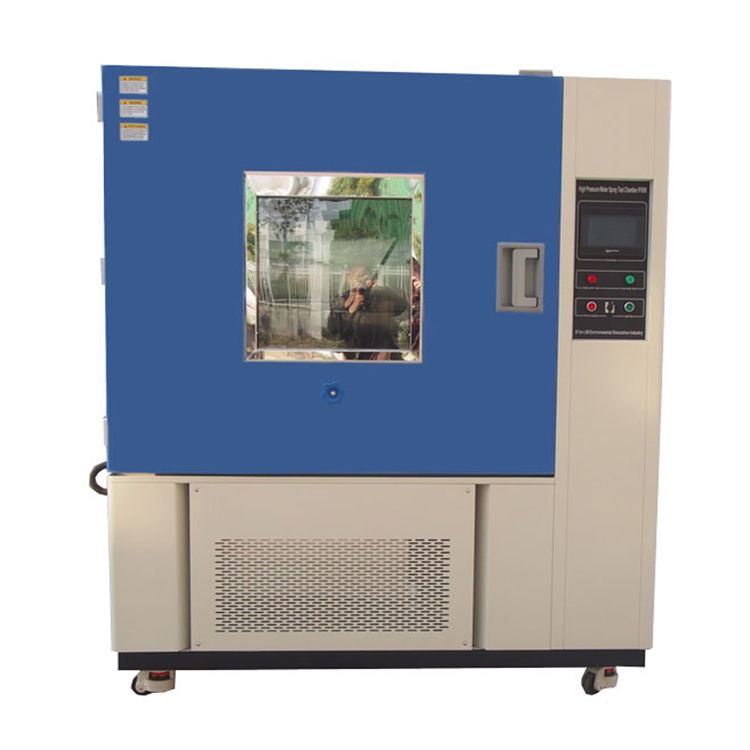

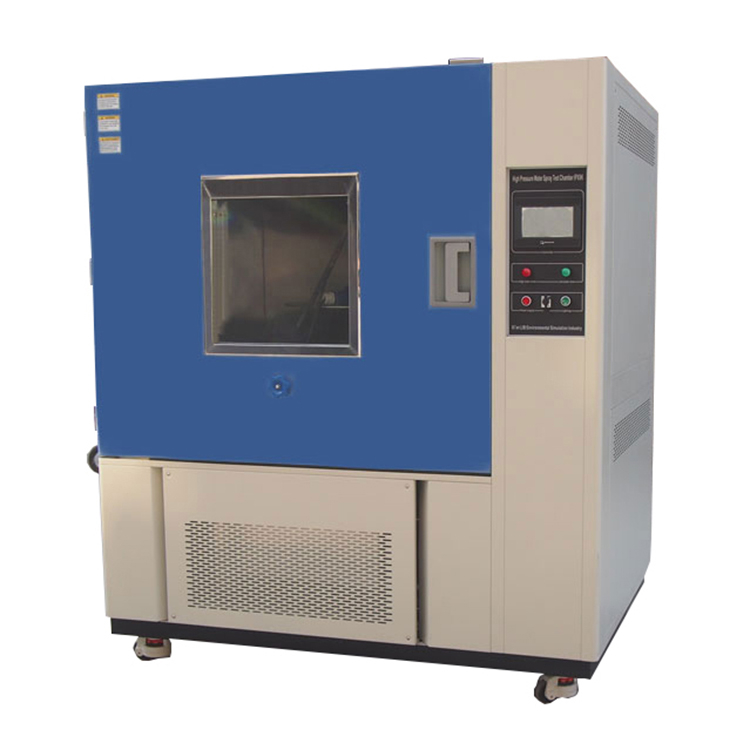

Model | IPX9k Test Chamber |
Internal dimensions (mm) | 1000*1200*1000 D*W*H |
Overall dimensions (mm) | 1250* 1700* 2050 D*W*H |
Water Spray Temperature | ambient ~ 88℃ (Adjustable) |
Water Spray Angle | 0°,30°,60°,90° |
Spray Nozzle | Four, 30 seconds each position |
Spray Range | 30° ± 5°(Single hole); Space 100-150mm |
Distance from water spraying to specimens | 10~15cm |
Water Pressure | 8000-10000 Kpa (adjustabl) |
Water Flow Rate | 14L-16L/min |
Testing Platform Speed | 5 ±1 r.p.m |
Test Platform height | 200-450mm, adjustable |
Test Platform diameters | 600mm |
Load | ≤100kg |
Controller | Programmable color LCD touch screen controller, Multi-language interface, Ethernet , USB |
Pressure meter Alarm function | Power protection, timing (to be automatic stop), water protection, motor overheating protection, water temperature overheating automatic drainage, water function |
Temperature Sensor | PTR Platinum Resistance PT100Ω/MV A-class |
Heater | Nichrome heater |
Interior material | SUS304 stainless steel |
Exterior material | Steel Plate with protective coating |
Power Supply | 380V 50HZ |
Description
IPX9K test chamber is widely used in the electronics, military and consumer product industries. IPX9K is the highest rating currently available for water ingress protection in accordance with IEC 60529 and ISO 20653.
Products under test is subjected to high pressure (8000 – 10000 Kpa), high temperature (+80°C) and water jets at a flow rate of 14 – 16 L/min.
IPX9K chamber built with a water re-circulation system that reduced water use and a series of water pipes. Automatic water supply ensures adequate supply of water and automatic testing.
All models are upgrade to programmable controller and Ethernet access that provides simple operation and control.
Features
IPX9K: protection against high pressure/steam jet cleaning
IPX9: protection against high pressure and temperature water jets
Rotatin turntable for specimens
Eliminates water consumption by circulation unit
Waterproof power connector in the test room
Automatic water supply
Programmable color display touch screen controller
USB and Ethernet
A viewing window with wiper
Internal illumination in test room
Safety protection system
CE mark, ISO17025 calibration
