Model | DI-800 | DI-1000 | DI-1500 | DI-2000 |
Internal dimensions (mm) | 800*1000*1000 | 1000*1000*1000 | 1000*1500*1000 | 1000*2000*1000 |
Overall dimensions (mm) | 1040*1450*1960 | 1200*1450*1960 | 1250*1900*1960 | 1300*2400*1960 |
Temperature range | Ambient to +50℃ | |||
Normal wire diameter | 50um | |||
Normal width of a gap between wire | 75um | |||
The Talcum powder amount | 2kg ~ 4kg/m3 | |||
Fight time | 0 ~ 99H59M | |||
Fan cycle time | 0 ~ 99H59M | |||
Specimen power outlet | Dust-proof socket AC220V 16A | |||
Controller | Programmable color LCD touch screen controller, Multi-language interface, Ethernet , USB | |||
Vacuum system | Equipped with a pressure gauge, air filter, pressure regulator, connecting tube | |||
Circulating fan | Enclosed alloy low-noise motor, multi-vane centrifugal fan | |||
Heating system | Independent Nichrome electronic heating system | |||
Exterior material | Steel Plate with protective coating | |||
Interior material | SUS304 stainless steel | |||
Safety System | Electric leakage, short circuit, Over-temperature, motor overheating Over-current protection/ Power failure memory function for controller | |||
Power supply | 380V 50HZ |
Description

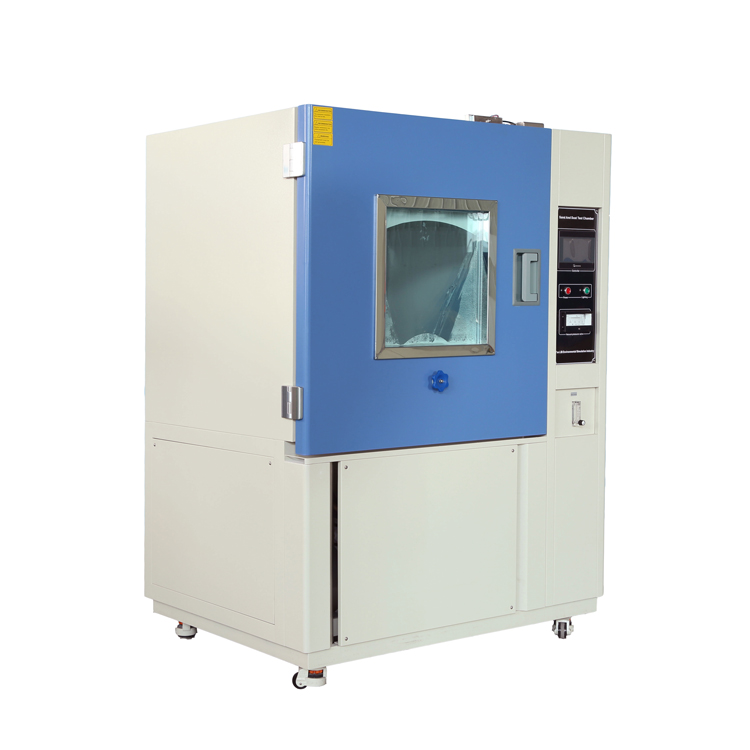

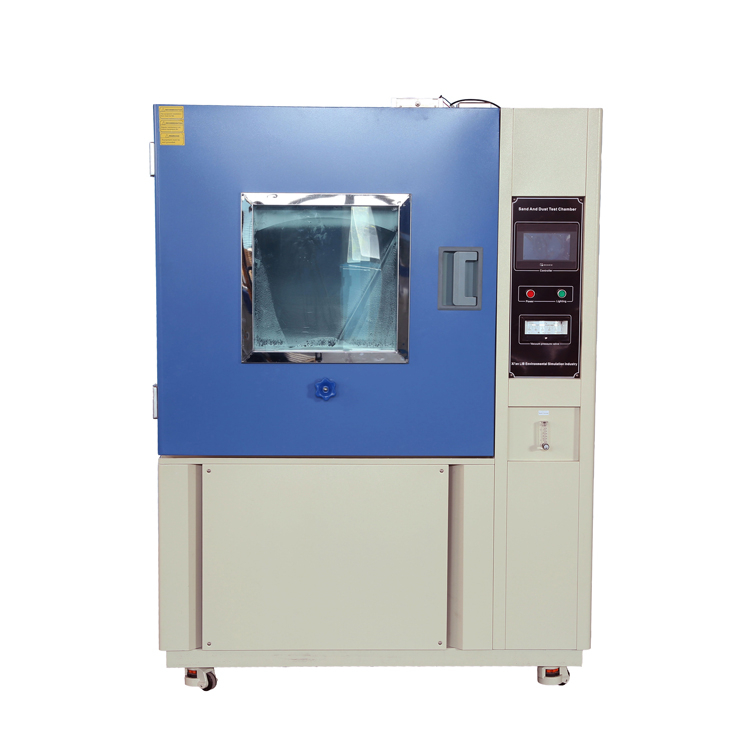

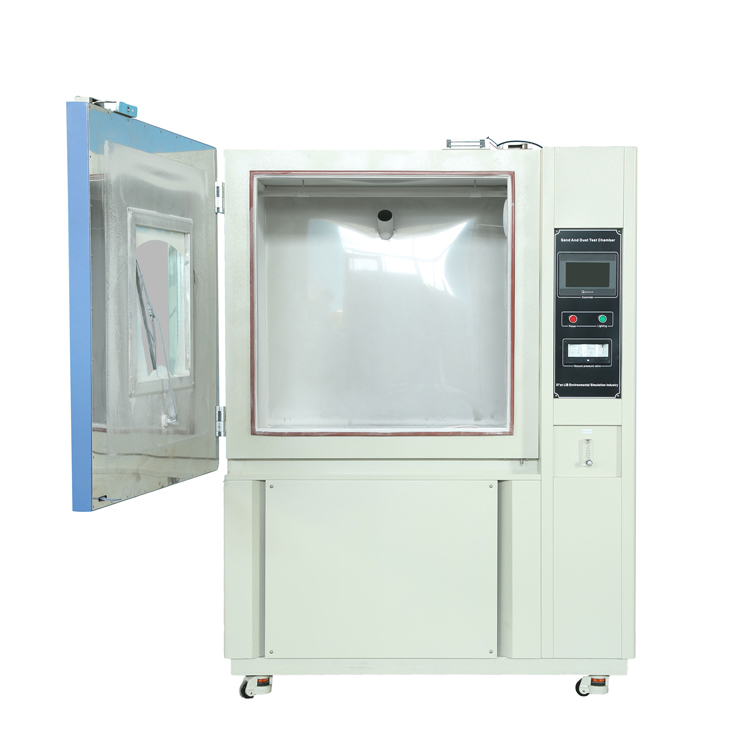

Dust test chambers are capacity of 800 liters and 1000 liters. Considering that some specimens are smaller and less, so we designed and produced this small dust chambers.
Sand and dust test chambers are made for the simulation of dust and sand conditions. These dust test chambers are used to test the exposure of test the exposure of automotive and electronic components under extreme environmental conditions in order to validate product seal.Dust ingress test methods included IEC60529, ISO20653 and many others.
The airflow circulates upward from the bottom, blowing the dust circulation,forcing dust around the specimens. All models are upgrade to programmable controller and Ethernet access that provides simple operation and control.
Features
Small capacity of 800 liters and 1000 liters.
IP6X IP5X ingress testing
Dust blowing through special wind tunnel and air outlet
Constant dust concentration
Programmable color LCD touch screen controller
Multi-language interface
USB and Ethernet
A viewing window with wiper
Strong stainless steel specimen shelves
Build -in power interface and vacuum system for specimens
Internal illumination in test room
Safety protection system
Talcum powder for dust chamber
CE mark, ISO17025 calibration
