Availability: | |
---|---|
Quantity: | |
Model | UV-260 | |
Internal dimensions (mm) | 450*1170*500 | 450*1170*500 |
Overall dimensions (mm) | 680*1300*1500 | 680*1300*1500 |
Individual specimen size is 75mm * 150mm | 48 pieces Individual specimen size is 75mm *150mm | |
Controller | Programmable color display touch screen controller | Programmable color display touch screen controller |
Temperature range | Ambient~90℃ ±2℃ | Ambient~90℃ ±2℃ |
Humidity range | ≥95%R.H ±2%R.H | ≥95%R.H ±2%R.H |
BPT 30~80℃ | ||
Fluorescent UV lamps (8) - 40 W | ||
290 ~ 400nm | ||
Irradiance Control | N/A | 0.3 ~ 20 W/㎡(340 nm / 313 nm) |
Water Spray | Spraying water | |
Distance of Specimen and lamp | 50mm | 50mm |
Nominal power | 5000W | 5500W |
Power Supply | 380V 50HZ | 380V 50HZ |
Description

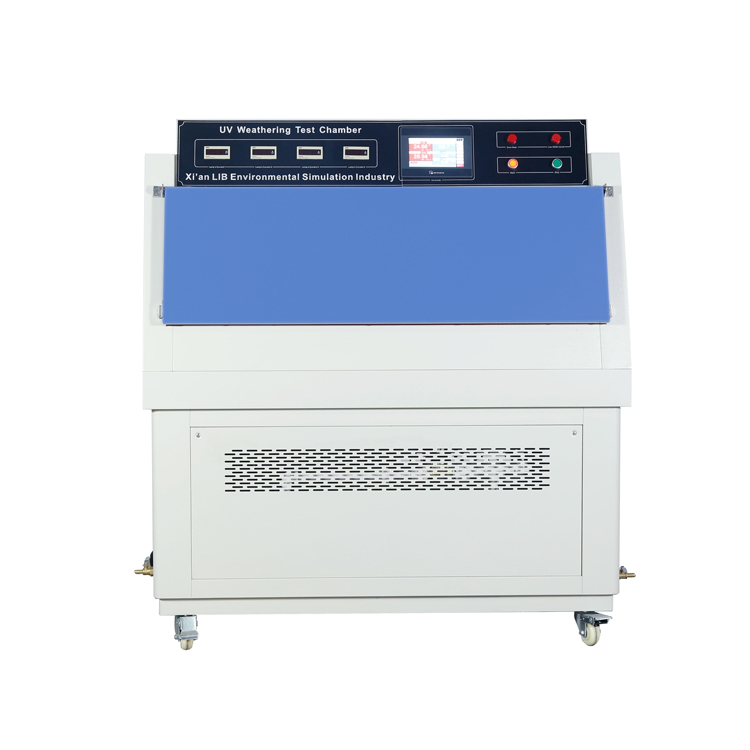

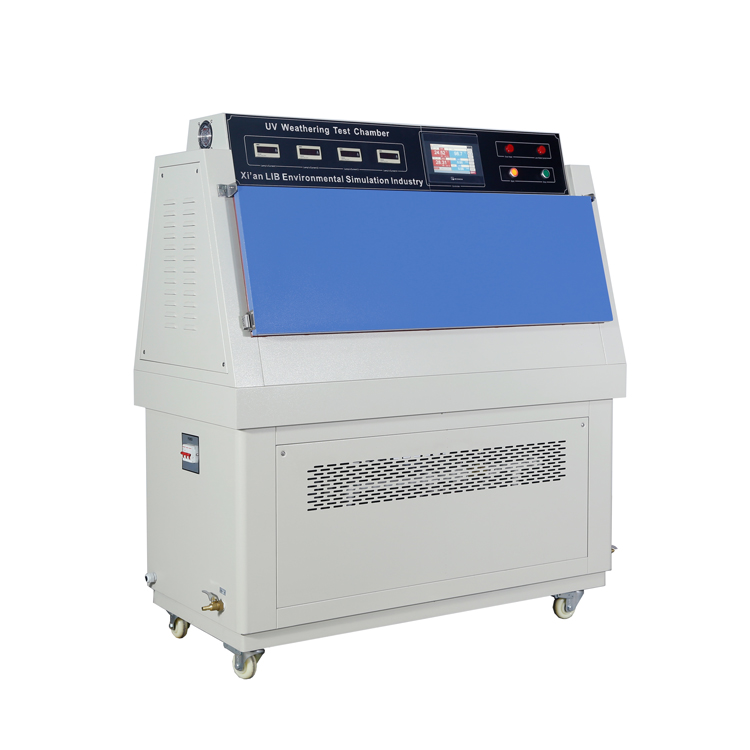

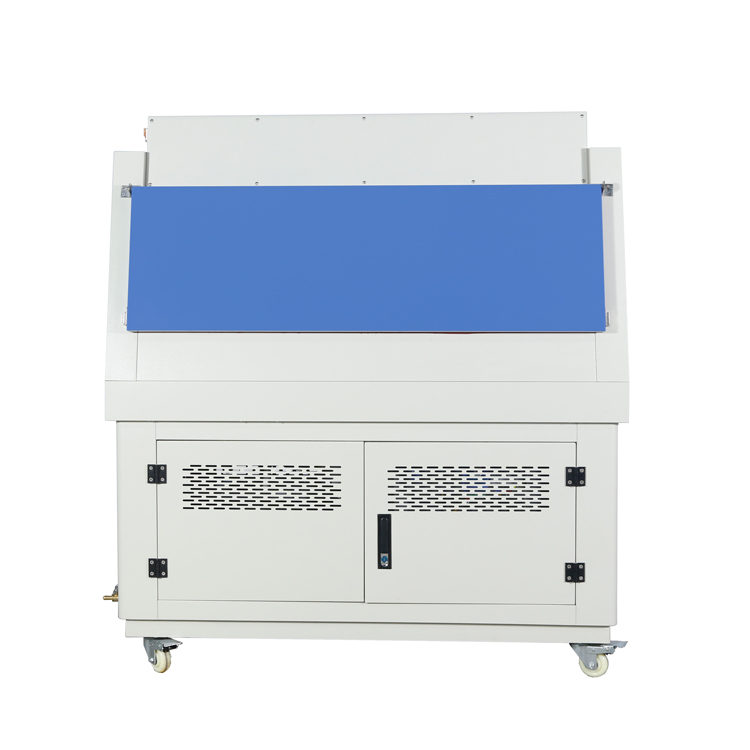

LIB UV test chamber is used in tests that incorporate UV light,temperature, condensing humidity, water sprays, and irradiance control. UV weathering resistance test chamber uses UVA-340, UVB-313 fluorescent UV lamps for a variety of test conditions. Accelerated weathering tests included color change, gloss loss, chalking, cracking, crazing, hazing, blistering, strength loss and oxidation and many others.
UV series weathering chambers are upgrade to programmable controller and Ethernet access that provides simple operation and control.
Features
Fluorescent UV lamps (8) – 40 W
Black Panel Temperature (BPT) at controlled, BPT 30~70℃
Temperature from Ambient to +90℃
Build-in water tank and automatic water supply
Programmable color display touch screen controller
Ethernet and USB
Easy to mount samples
Sample holders and casters are standard
Safety protection system
CE and RoHS compliance, ISO17025 calibration
