Views: 14 Author: LIB Team Publish Time: 2022-02-02 Origin: Site
LIB has partnered with the battery industry to meet reliability test standards.Exposing lithium-ion battery technology to extreme temperature,humidity,altitude and vibration conditions helps manufacturers improve durability,reliability,safety and performance.

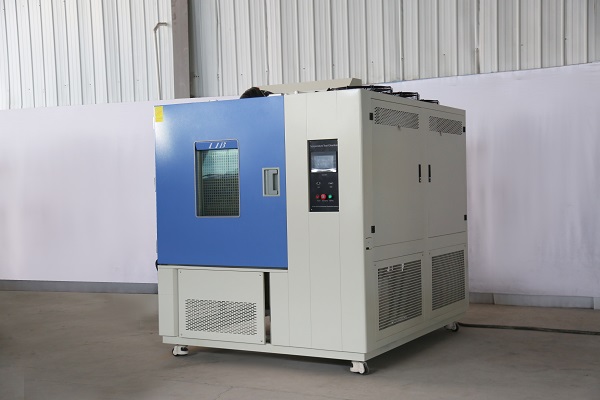

The parameters of LIB Explosion-proof Temperature Chamber as follow
Internal Dimension: | 1000*1000*1000 mm |
Overall Dimension: | 1900*1600*1850 mm |
Volume: | 1000L |
Temperature Range: | -40℃～+150 ℃ |
Fluctuation: | ± 0.5 ℃ |
Deviation: | ± 2.0 ℃ |
Heating Rate: | 3 ℃ / min |
Heating Element: | Nichrome heater |
Temperature Sensor: | PTR Platinum Resistance PT100Ω/MV A-class |
Cooling Rate: | 1 ℃ / min |

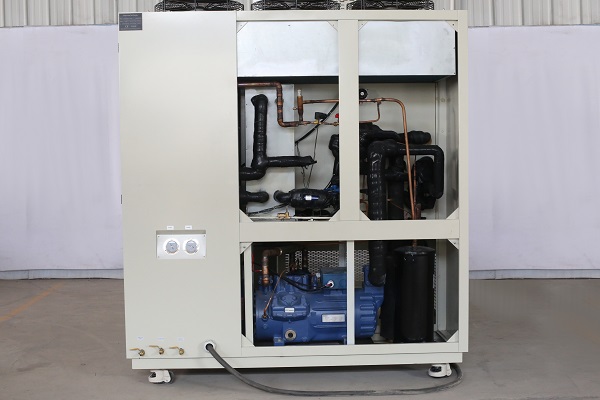

Cooling system: | French TECUMSEH compressor refrigeration system |
Material: | SUS304 stainless steel |
Thermal Insulation: | Polyurethane foam and insulation cotton |
Controller: | Programmable color LCD touch screen controller |
Air Circulation: | Centrifugal wind fan |
Window Material: | Interior lighting, double-layer thermo stability silicone rubber sealing, View window with explosive proof grid |
Standard Configuration: | Smoke detect sensor, Water spray system, Smoke exhaust port, 1 Cable hole with plug; 2 shelves |
