Availability: | |
---|---|
Quantity: | |

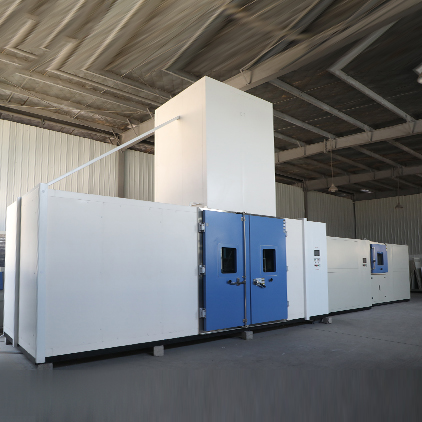

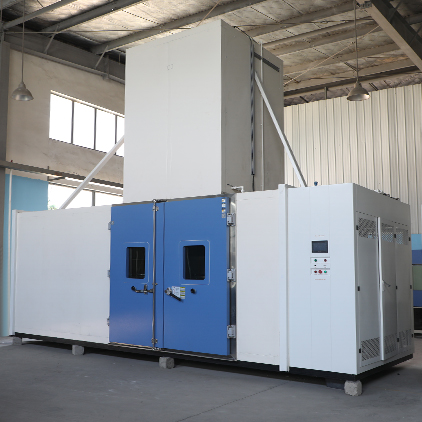

Model | RIM-0120 |
Internal Dimension | 1600*3460*2000 mm D*W*H |
Overall Dimension | 2580*6400*4900 mm D*W*H |
The load Turntable | 100kg |
The diameter of Turntable | 800mm |
Drip tray size | 1600*1000mm , height can be adjustable |
Rain and Blowing Rain | |
Air speed | ≥ 18m/s |
Rainfall rate | ≥ 1.7mm/min |
Droplet size | 0.5mm ~ 4.5mm |
Turntable speed | 1-7 r/min, adjustable |
Volume of water | ≥280L/m2/h |
Exaggerated | |
Nozzle pressure | 276kpa |
Rainfall rate | 20.8L/min |
Temperature Sensor | PTR Platinum Resistance PT100Ω/MV A-class |
Water supply system | Storage water tank; Booster pump; |
Automatic water supply; Water purification system; | |
Cooling system | Mechanical compression refrigeration system |
Controller | Programmable color LCD touch screen controller |
Build-in Water Tank(mm) | 710*1130*1400 mm |
Door Lock | Electromagnetic lock |
Exterior Material | A3 Steel Plate with protective coating |
Interior Material | SUS304 stainless steel |
Observation Window | Interior lighting, double-layer thermo stability silicone rubber sealing |
Standard | MIL-STD-810H |
Features
TEMPERATURE
Ambient~80℃
RAIN AND BLOWING RAIN
1.7 mm/min
Air velocity 9m/s on test item
EXAGGERATED
20.8 L/min
Pressure 276 kpa
DRIP
280 L/m2/hr
Wind Speed Control
Internal illumination in test room
Safety protection system
Model | RIM-0120 |
Internal Dimension | 1600*3460*2000 mm D*W*H |
Overall Dimension | 2580*6400*4900 mm D*W*H |
The load Turntable | 100kg |
The diameter of Turntable | 800mm |
Drip tray size | 1600*1000mm , height can be adjustable |
Rain and Blowing Rain | |
Air speed | ≥ 18m/s |
Rainfall rate | ≥ 1.7mm/min |
Droplet size | 0.5mm ~ 4.5mm |
Turntable speed | 1-7 r/min, adjustable |
Volume of water | ≥280L/m2/h |
Exaggerated | |
Nozzle pressure | 276kpa |
Rainfall rate | 20.8L/min |
Temperature Sensor | PTR Platinum Resistance PT100Ω/MV A-class |
Water supply system | Storage water tank; Booster pump; |
Automatic water supply; Water purification system; | |
Cooling system | Mechanical compression refrigeration system |
Controller | Programmable color LCD touch screen controller |
Build-in Water Tank(mm) | 710*1130*1400 mm |
Door Lock | Electromagnetic lock |
Exterior Material | A3 Steel Plate with protective coating |
Interior Material | SUS304 stainless steel |
Observation Window | Interior lighting, double-layer thermo stability silicone rubber sealing |
Standard | MIL-STD-810H |
Features
TEMPERATURE
Ambient~80℃
RAIN AND BLOWING RAIN
1.7 mm/min
Air velocity 9m/s on test item
EXAGGERATED
20.8 L/min
Pressure 276 kpa
DRIP
280 L/m2/hr
Wind Speed Control
Internal illumination in test room
Safety protection system
