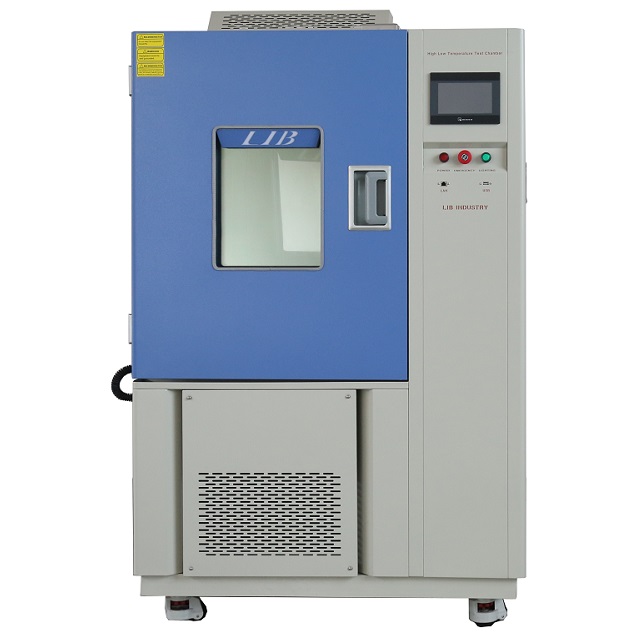

Cryogenic Chamber Ultra Low Temperature Chamber

LIB cryogenic chamber uses a mechanical compressor to cool to -120℃, which replaces the traditional liquid nitrogen cooling method. The test chamber sizes are 100L, 225L, 500L, 800L, 1000L for choose. The temperature test range is-120 ℃ to 150℃. It can be applied to various field for test by simulating extreme natural environments, to detect product substitution and performance stability. Standard and custom models for your choise.
Availability:
Quantity:
  • CF-100

  • LIB Industry


Model CF-100
Internal Dimension (mm) 500*600*750
Overall Dimension (mm) 960*1150*1860
Temperature Range (℃) -120℃ ~ +150℃
Cooling Rate 1℃/min
Heating rate 3℃/min
Temperature Fluctuations  ± 0.5 ℃
Temperature deviation ± 2.0 ℃
Interior Volume 100 liters
Controller  Programmable color LCD touch screen controller, Multi-language interface, Ethernet , USB
Cooling System Mechanical compression refrigeration system
Exterior Material Steel Plate with protective coating
Interior Material SUS304 stainless steel
Power Supply 380V 50Hz
Maximum Noise 65 dBA


Description

LIB cryogenic chamber uses a mechanical compressor to cool to -120℃, which replaces the traditional liquid nitrogen cooling method. The test chamber sizes are 100L, 225L, 500L, 800L, 1000L for choose. The temperature test range is-120 ℃ to 150℃. It can be applied to various field for test by simulating extreme natural environments, to detect product substitution and performance stability.


Features

The lowest temperature can reach to -120 ℃

Mechanical compression refrigeration cooling system

Cascade compressor refrigerating unit

Programmable color LCD touch screen controller

Safety protection system

Adjustable and removable sample shelves

CE ROHS mark

Standard and customized
