R-1000JIS
LIB Industry
Model | R-1000JIS |
Internal Dimensions (mm) | 1000*1000*1000 D*W*H |
Overall Dimensions (mm) | 1100*1460*1900 D*W*H |
Interior Volume (L) | 1000 |
Distance from Specimen to Nozzle | Approx.400mm |
Rain Nozzle | 2 holes |
Rain Nozzle Hole | Φ0.5mm |
R1 Water Flow Rate | 1.9L/min. |
R2 Water Flow Rate | 3.3L/min. |
Spray Nozzle | 40 holes |
Spray Nozzle Hole | Φ1.2mm |
S1 Water Flow Rate | 24.5L/min |
S2 Water Flow Rate | 39.2L/min |
Water Pressure at Nozzle | 0.03 ~ 0.30MPA |
Turntable Rotation Speed | 17r/min |
Water Pressure Control | Flow meter |
Controller | Programmable color LCD touch screen controller |
Ethernet connection, PC Link, USB | |
Build-in Water Tank(mm) | 370*375*950 |
View Window Size(mm) | 475*475 |
Safety Device | Over-temperature Protection; Over-current Protection; Water Shortage Protection; Earth leakage Protection; Phase Sequence Protection |
Exterior Material | Steel Plate with protective coating |
Interior Material | SUS304 stainless steel |
Power Supply | 380V 50Hz |
Maximum Noise | 65 dBA |
Standard | JIS D0203 |
Description

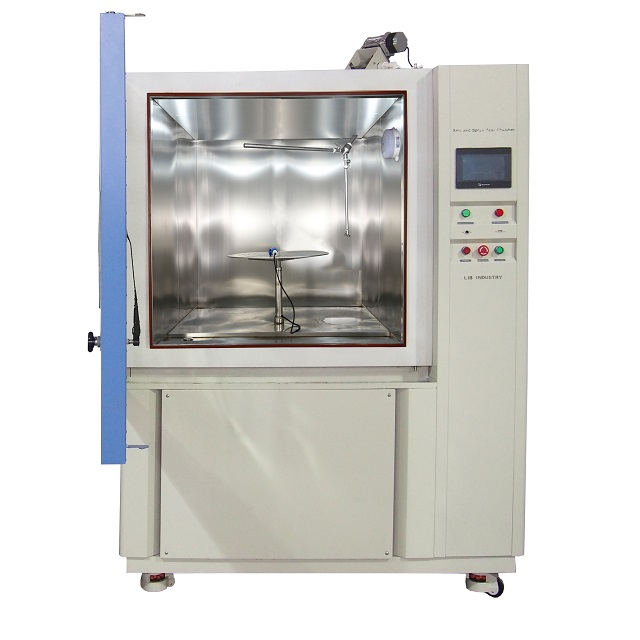

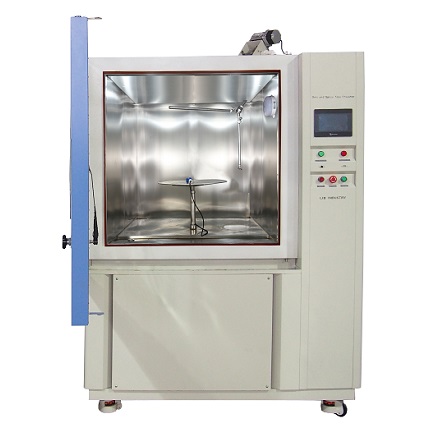

JIS D 0203 Rain Spray Chamber is formulated in accordance with JIS D 0203 standard to test the waterproof performance of the automobile parts, equipped with automatic water inlet and water circulation device, effectively saving money.
Rain spray test chambers are prepared according to different test requirements. The multi-function controller is easy to operate, one-key controls the test requirements parameters, and can be connected to the PC terminal remotely to facilitate the download and use of test data. JIS D 0203 Rain Spray Chamber is mainly applied to automobile parts test.
Features
R1 R2 Rain Test
2 rain nozzles, hole diameterΦ1.2mm
S1 S2 Spray Test
40 spray nozzles, hole diameterΦ0.5mm
Standard
JIS D 0203
Water Re-circulation System
Automatic water supply
Programmable color display touch screen controller
USB and Ethernet
Internal illumination in test room
Safety protection system
CE mark, ISO17025 calibration
 |  |
 |
|
