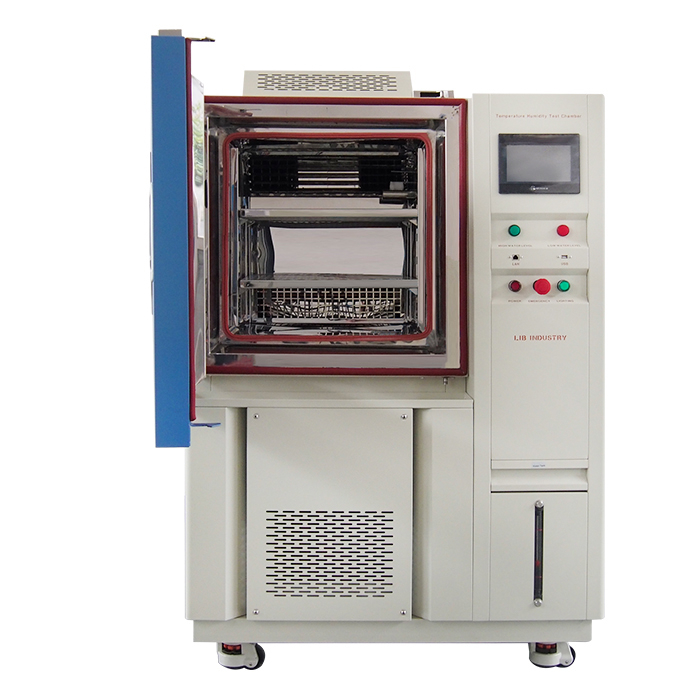

Humidity Temperature Chamber

LIB TH Series Humidity Temperature Chamber are available in a variety of sizes to suit your needs, 50L to 3000L different volume for choose. More than 98 different models allow you to choose the size and performance best suited for your test applications, choose either a temperature only model or a temperature and humidity configuration.

More options fitted to your testing. You can select your Humidity and Temperature Chamber from the door, cooling system, controller, language and so much more. Provide temperature, climate, vibration, corrosion, emissions, altitude, pressure combined test.

Availability:

Quantity:


Inquire Add to Basket

Model:
TH-800A
Brand:
LIB Industry

Advantage

●Save water

The automatic water inlet system has realized water circulation and water resources saving, and also realized automated testing.

●Multi-language controller display

Multiple languages can be selected, English, Chinese, Russian, Korean, German, French, Polish, Spanish, Turkish, Romanian

Specification

Model	TH-500	TH-800
Internal Dimension (mm)	700800900	80010001000
Overall Dimension (mm)	120013402020	130015402120
Interior Volume	500L	800L
Heat load	1000W
Temperature Range	A : -20℃ ～ +150 ℃ B : -40℃ ～ +150 ℃ C: -70℃ ～ +150 ℃
Temperature Fluctuation	± 0.5 ℃
Temperature Deviation	± 2.0 ℃
Humidity Range	20% ~ 98% RH
Humidity Deviation	± 2.5% RH
Cooling Rate	1 ℃ / min
Heating Rate	3 ℃ / min
Cooling system	Mechanical compression refrigeration system
Refrigerating unit	French TECUMSEH compressor
Heating Element	Nichrome heater
Controller	Programmable color LCD touch screen controller,Ethernet connection, PC Link
Water supply system	Automatic water supply,Water purification system
Humidifier	External isolation, stainless steel surface evaporation humidifier
Temperature Sensor	PTR Platinum Resistance PT100Ω/MV A-class, accuracy 0.001℃
Humidity Sensor	Dry and wet bulb sensor
Exterior Material	Steel Plate with protective coating
Interior Material	SUS304 stainless steel
Thermal Insulation	Polyurethane foam and insulation cotton
Standard Configuration	1 Cable hole (Φ 50,) with plug; 2 shelves

Description

LIB TH Series Humidity Temperature Chamber are available in a variety of sizes to suit your needs, 50L to 3000L different volume for choose. More than 98 different models allow you to choose the size and performance best suited for your test applications, choose either a temperature only model or a temperature and humidity configuration.

More options fitted to your testing. You can select your Humidity and Temperature Chamber from the door, cooling system, controller, language and so much more. Provide temperature, climate, vibration, corrosion, emissions, altitude, pressure combined test.
