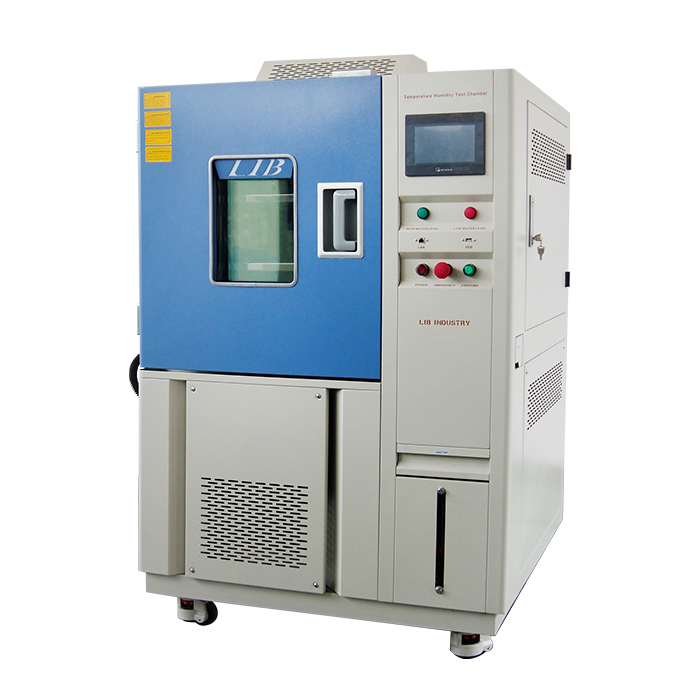

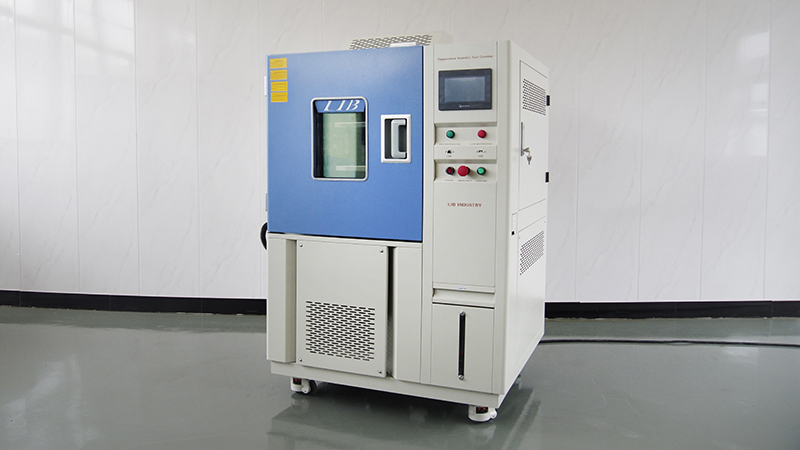

Humidity Chamber

LIB TH Series Humidity Chamber are available in a variety of sizes to suit your needs, 50L to 3000L different volume for choose. More than 98 different models allow you to choose the size and performance best suited for your test applications, choose either a temperature only model or a temperature and humidity configuration.

More options fitted to your testing. You can select your Temperature Humidity Test Chamber from the door, cooling system, controller, language and so much more. Provide temperature, climate, vibration, corrosion, emissions, altitude, pressure combined test.

Availability:

Quantity:


Inquire Add to Basket

Model:
TH-100B
Brand:
LIB Industry

Advantage

●Network communication

The source code of the LIB control system can be opened to customers, which can match the operating software or connect to the lab WEB system.

●Full Climate

Can achieve low temperature, high temperature, low humidity and high humidity environmental testing.

Specification

Model	TH-100	TH-225
Internal Dimension (mm)	400500500	500600750
Overall Dimension (mm)	90010501620	100011401870
Interior Volume	100L	225L
Heat load	1000W
Temperature Range	A : -20℃ ～ +150 ℃ B : -40℃ ～ +150 ℃ C: -70℃ ～ +150 ℃
Temperature Fluctuation	± 0.5 ℃
Temperature Deviation	± 2.0 ℃
Humidity Range	20% ~ 98% RH
Humidity Deviation	± 2.5% RH
Cooling Rate	1 ℃ / min
Heating Rate	3 ℃ / min
Cooling system	Mechanical compression refrigeration system
Refrigerating unit	French TECUMSEH compressor
Heating Element	Nichrome heater

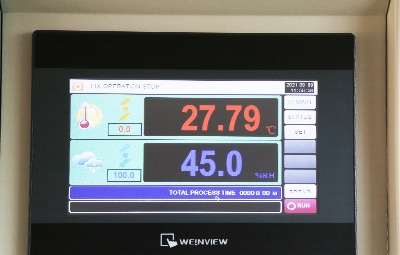

Controller	Programmable color LCD touch screen controller,Ethernet connection, PC Link
Water supply system	Automatic water supply,Water purification system
Humidifier	External isolation, stainless steel surface evaporation humidifier
Temperature Sensor	PTR Platinum Resistance PT100Ω/MV A-class, accuracy 0.001℃
Humidity Sensor	Dry and wet bulb sensor
Exterior Material	Steel Plate with protective coating

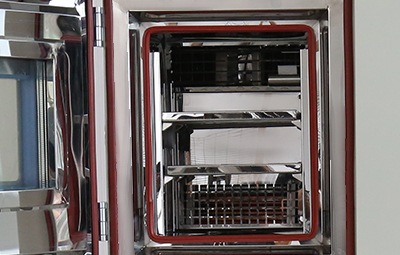

Interior Material	SUS304 stainless steel
Thermal Insulation	Polyurethane foam and insulation cotton
Standard Configuration	1 Cable hole (Φ 50,) with plug; 2 shelves

Description

LIB TH Series Humidity Chamber are available in a variety of sizes to suit your needs, 50L to 3000L different volume for choose. More than 98 different models allow you to choose the size and performance best suited for your test applications, choose either a temperature only model or a temperature and humidity configuration.

More options fitted to your testing. You can select your Temperature Humidity Test Chamber from the door, cooling system, controller, language and so much more. Provide temperature, climate, vibration, corrosion, emissions, altitude, pressure combined test.

Details
