Advantage
●EMC Test
The calibration test chamber is EMC tested and will not cause electromagnetic interference to the tested electronic products.
●Small and Affordable
The benchtop chamber is specially designed to meet the customer's small space and small test specimens, and has a more competitive price.
Specification
Model | TH-50 | TH-80 |
Internal dimension (mm) | 320*350*450 | 400*400*500 |
Overall dimension (mm) | 800*1050*950 | 900×1100×1000 |
Capacity | 50L | 80L |
Temperature range | A:-20℃ ~+150 ℃ | |
Low type | B: -40℃ C:-70℃ D: -86℃ | |
Temperature fluctuations | ± 0.5 ℃ | |
Temperature deviation | ± 2.0 ℃ | |
Heating rate | 3 ℃ / min | |
Cooling rate | 1 ℃ / min | |
Humidity range | 20% -98%RH | |
Humidity Deviation | ± 2.5% RH | |
Controller | Programmable color LCD touch screen controller, Ethernet , USB | |
Cooling system | Mechanical compression refrigeration system | |
Safety device | Humidifier dry-combustion protection; over-temperature protection; over-current protection; Refrigerant high-pressure protection; Water shortage protection, Earth leakage protection; | |
Exterior material | Steel Plate with protective coating | |
Interior material | SUS304 stainless steel | |
Power Supply | 220V 50HZ | |
Maximum Noise | 65 dBA |
Description

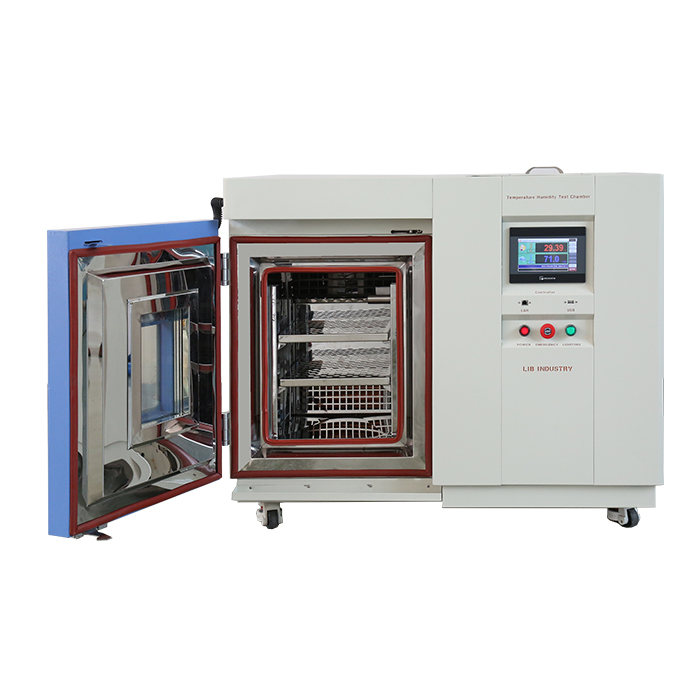

The portable temperature chamber is capable of simulating a full range of temperature and humidity conditions. The small size and easy operation make this chamber the ideal choise for testing smaller products in laboratory. This model with temperature change rate of 1k/min and 5k/min can meet requirement for fast cycling test.
This mini environmental chamber meets customer requirements including storage, testing and calibration.
Details

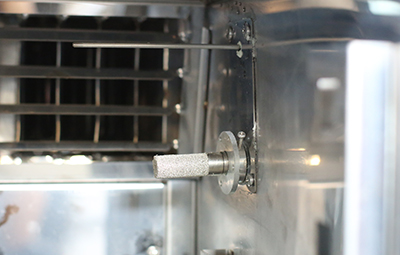

Capacitive type sensor
Double layer sample holder
Multiple languages are available
Advantage
●EMC Test
The calibration test chamber is EMC tested and will not cause electromagnetic interference to the tested electronic products.
●Small and Affordable
The benchtop chamber is specially designed to meet the customer's small space and small test specimens, and has a more competitive price.
Specification
Model | TH-50 | TH-80 |
Internal dimension (mm) | 320*350*450 | 400*400*500 |
Overall dimension (mm) | 800*1050*950 | 900×1100×1000 |
Capacity | 50L | 80L |
Temperature range | A:-20℃ ~+150 ℃ | |
Low type | B: -40℃ C:-70℃ D: -86℃ | |
Temperature fluctuations | ± 0.5 ℃ | |
Temperature deviation | ± 2.0 ℃ | |
Heating rate | 3 ℃ / min | |
Cooling rate | 1 ℃ / min | |
Humidity range | 20% -98%RH | |
Humidity Deviation | ± 2.5% RH | |
Controller | Programmable color LCD touch screen controller, Ethernet , USB | |
Cooling system | Mechanical compression refrigeration system | |
Safety device | Humidifier dry-combustion protection; over-temperature protection; over-current protection; Refrigerant high-pressure protection; Water shortage protection, Earth leakage protection; | |
Exterior material | Steel Plate with protective coating | |
Interior material | SUS304 stainless steel | |
Power Supply | 220V 50HZ | |
Maximum Noise | 65 dBA |
Description
The portable temperature chamber is capable of simulating a full range of temperature and humidity conditions. The small size and easy operation make this chamber the ideal choise for testing smaller products in laboratory. This model with temperature change rate of 1k/min and 5k/min can meet requirement for fast cycling test.
This mini environmental chamber meets customer requirements including storage, testing and calibration.
Details
Capacitive type sensor
Double layer sample holder
Multiple languages are available
