TH-50B
LIB Industry
Advantage
▶Observation window
The test window of the Temperature test machine is attached with lights to keep the box bright, and the double glass is used to observe the situation in the box clearly at any time
▶Test hole
Test holes with a diameter of 50mm/100mm are provided on the left side of the benchtop test machine, which can be used for external test power cables or signal cables.
Specification
Model | TH-50 | TH-80 |
Internal dimension (mm) | 320*350*450 | 400*400*500 |
Overall dimension (mm) | 800*1050*950 | 900×1100×1000 |
Capacity | 50L | 80L |
Temperature range | A:-20℃ ～+150 ℃ | |
Low type | B: -40℃ C:-70℃ D: -86℃ | |
Temperature fluctuations | ± 0.5 ℃ | |
Temperature deviation | ± 2.0 ℃ | |
Heating rate | 3 ℃ / min | |
Cooling rate | 1 ℃ / min | |
Humidity range | 20% -98%RH | |
Humidity Deviation | ± 2.5% RH | |
Controller | Programmable color LCD touch screen controller, Ethernet , USB | |
Cooling system | Mechanical compression refrigeration system | |
Safety device | Humidifier dry-combustion protection; over-temperature protection; over-current protection; Refrigerant high-pressure protection; Water shortage protection, Earth leakage protection; | |
Exterior material | Steel Plate with protective coating | |
Interior material | SUS304 stainless steel | |
Power Supply | 220V 50HZ | |
Maximum Noise | 65 dBA | |
Description

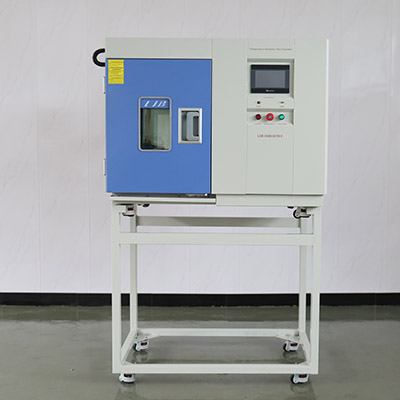

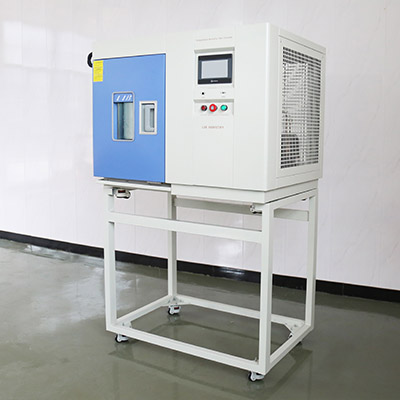

The small humidity controlled chamber is capable of simulating a full range of temperature and humidity conditions. The small size and easy operation make this chamber the ideal choise for testing smaller products in laboratory. This model with temperature change rate of 1k/min and 5k/min can meet requirement for fast cycling test.
This mini environmental chamber meets customer requirements including storage, testing and calibration.
Details
LAN & USB
Test Area
Controller
