Advantage
●Small and Affordable
The benchtop chamber is specially designed to meet the customer's small space and small test specimens, and has a more competitive price.
●Full functioning
Can perform precise testing of temperature only, temperature and humidity.
Specification
Model | TH-50 | TH-80 |
Internal dimension (mm) | 320*350*450 | 400*400*500 |
Overall dimension (mm) | 800*1050*950 | 900×1100×1000 |
Capacity | 50L | 80L |
Temperature range | A:-20℃ ～+150 ℃ | |
Low type | B: -40℃ C:-70℃ D: -86℃ | |
Temperature fluctuations | ± 0.5 ℃ | |
Temperature deviation | ± 2.0 ℃ | |
Heating rate | 3 ℃ / min | |
Cooling rate | 1 ℃ / min | |
Humidity range | 20% -98%RH | |
Humidity Deviation | ± 2.5% RH | |
Controller | Programmable color LCD touch screen controller, Ethernet , USB | |
Cooling system | Mechanical compression refrigeration system | |
Safety device | Humidifier dry-combustion protection; over-temperature protection; over-current protection; Refrigerant high-pressure protection; Water shortage protection, Earth leakage protection; | |
Exterior material | Steel Plate with protective coating | |
Interior material | SUS304 stainless steel | |
Power Supply | 220V 50HZ | |
Maximum Noise | 65 dBA | |
Description
The compact test chamber is capable of simulating a full range of temperature and humidity conditions. The small size and easy operation make this chamber the ideal choise for testing smaller products in laboratory. This model with temperature change rate of 1k/min and 5k/min can meet requirement for fast cycling test.
This mini environmental chamber meets customer requirements including storage, testing and calibration.
Details

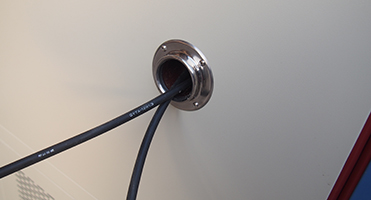

Cable hole
Test area
Controller
Advantage
●Small and Affordable
The benchtop chamber is specially designed to meet the customer's small space and small test specimens, and has a more competitive price.
●Full functioning
Can perform precise testing of temperature only, temperature and humidity.
Specification
Model | TH-50 | TH-80 |
Internal dimension (mm) | 320*350*450 | 400*400*500 |
Overall dimension (mm) | 800*1050*950 | 900×1100×1000 |
Capacity | 50L | 80L |
Temperature range | A:-20℃ ～+150 ℃ | |
Low type | B: -40℃ C:-70℃ D: -86℃ | |
Temperature fluctuations | ± 0.5 ℃ | |
Temperature deviation | ± 2.0 ℃ | |
Heating rate | 3 ℃ / min | |
Cooling rate | 1 ℃ / min | |
Humidity range | 20% -98%RH | |
Humidity Deviation | ± 2.5% RH | |
Controller | Programmable color LCD touch screen controller, Ethernet , USB | |
Cooling system | Mechanical compression refrigeration system | |
Safety device | Humidifier dry-combustion protection; over-temperature protection; over-current protection; Refrigerant high-pressure protection; Water shortage protection, Earth leakage protection; | |
Exterior material | Steel Plate with protective coating | |
Interior material | SUS304 stainless steel | |
Power Supply | 220V 50HZ | |
Maximum Noise | 65 dBA | |
Description
The compact test chamber is capable of simulating a full range of temperature and humidity conditions. The small size and easy operation make this chamber the ideal choise for testing smaller products in laboratory. This model with temperature change rate of 1k/min and 5k/min can meet requirement for fast cycling test.
This mini environmental chamber meets customer requirements including storage, testing and calibration.
Details
Cable hole
Test area
Controller
