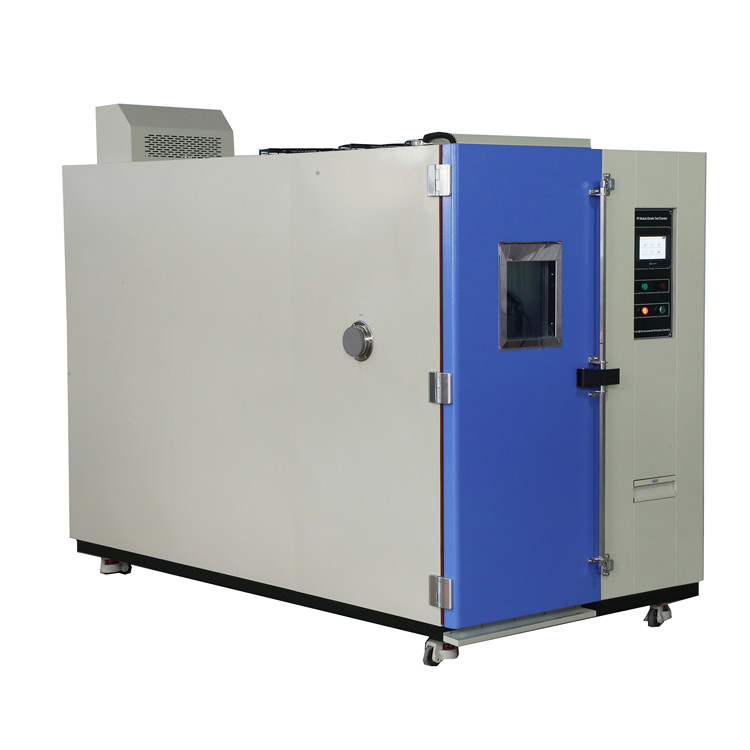

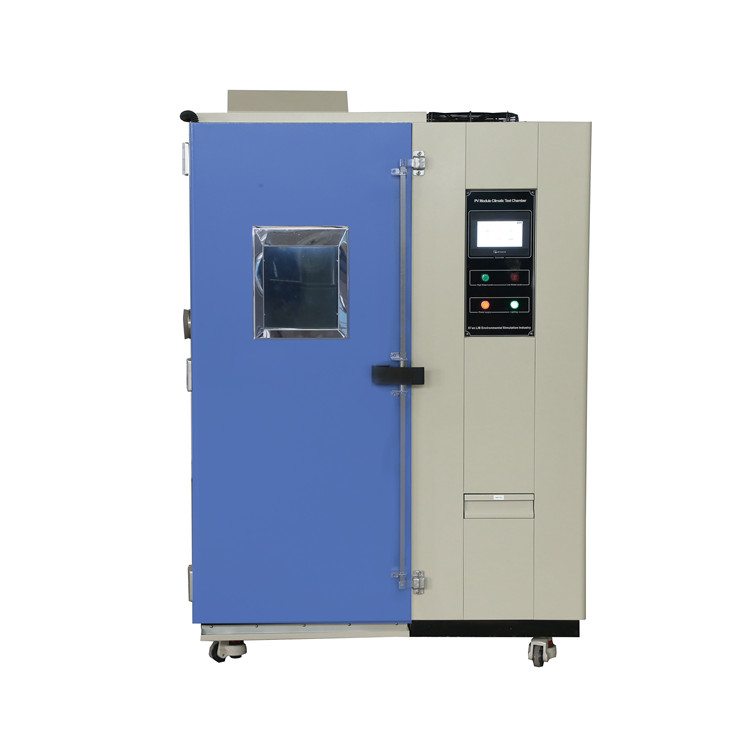

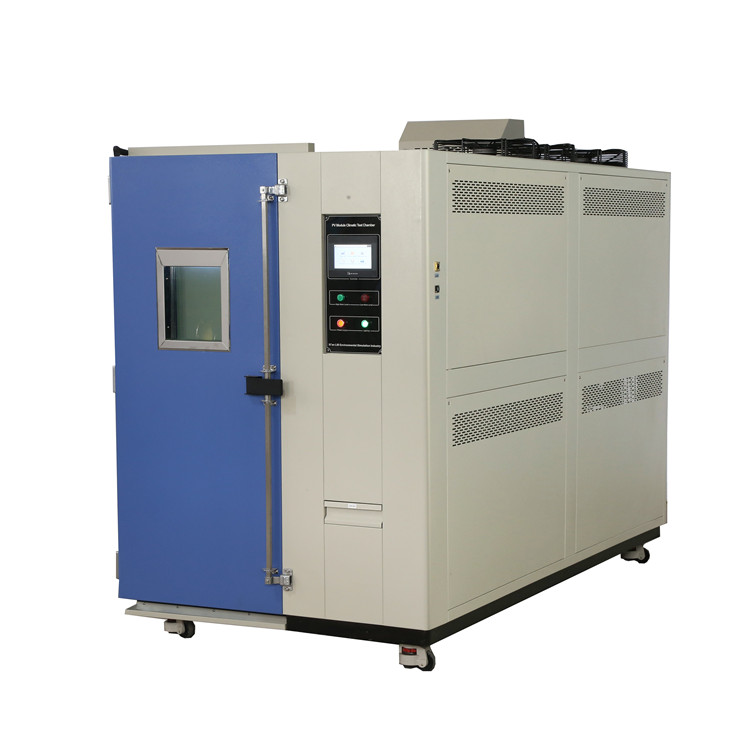

PV-04
| Model | PV-04 |
| Internal Dimension (mm) | 1300(D) * 700(W) * 1350(H) |
| Overall Dimension (mm) | 1900(D) * 1100(W) * 1750(H) |
| Effective volume | 1220Liters (1.22m3) |
| Temperature Range (℃) | -40°C～+100°C, controllable |
| Temperature fluctuation | ±0.5℃ |
| Temperature uniformity | ±2℃ |
| Humidity range | 20%~98%RH, controllable |
| Humidity deviation | +2 /-3%RH |
| Cooling Rate | 1 ~ 3.4 ℃/min (adjustable) |
| Heating rate | 1 ~ 3.4 ℃/min (adjustable) |
| Controller | Programmable color LCD touch screen controller, Multi-language interface, Ethernet , USB |
| Insulation window | Double thermo stability silicone rubber sealing |
| Air circulation | Cold resistance and low noise centrifugal fan and motor |
| Safety protection system | Complete safety system |
| Power supply | AC 380V 50Hz; 3Phase |
| Standard | IEC61215, UL 1703, IEC61646.... |
| Temperature sensor | PTR Platinum Resistance PT100Ω/MV A-class |
| Refrigerating unit | French TECUMSEH compressor, with environmental friendly R404A, R23 Refrigerant |
| Exterior Material | Steel Plate with protective coating |
| Interior Material | SUS304 stainless steel |
Description
Over 29 different models let you choose size, configuration and performance to suit many types of environmental test conditions. Temperature change rates from 1 to 15°C/min.Low temperature available: A: -20℃, B: -40℃, C: -70℃ , D: -86℃.E:-200℃( liquid nitrogen refrigeration.
Included are ultra low temperature test chamber, fast temperature change rate chambers (15℃/min) and liquid nitrogen refrigeration test chamber.
To perform cold resistance test, thermal cycling test, ultra low temperature test, high temperature test, storage condition, and calibration function.
Features
Test chambers meet IEC 61215, IEC61646,UL-1703 and similar test methods
Thermal cycle test – 50 and 200 cycles from -40℃ to +85℃
Humidity freeze test – 10 cycles from +85℃ & 85%RH to -40℃
Damp heat test – 1000h at 85℃ & 85%RH
Different models to suit various size of PV Solar Panels
Supporting racks for fix PV panels
Adjusting heat & cooling change rate
Reliable performance
Temperature control and display unit
Humidity control and display unit
Programmable color LCD touch screen controller
Multi-language interface
USB and Ethernet
Mechanical compression refrigeration system
Casters, racks, and cable port are standard
Build-in water tank
Safety protection system
CE mark, ISO17025 calibration
 |  |
 |
