SO-100/SO-225/SO-500/SO-800/SO-1000
SO-100 | SO-225 | SO-1000 | |||
Internal dimensions (mm) | 450*450*500 | 500*600*750 | 800*700*900 | 800*1000*1000 | 1000*1000*1000 |
Overall dimensions (mm) | 1050*880*1440 | 1050*1020*2000 | 1320*1320*2170 | 1470*1520*2315 | 1670*1520*2315 |
Temperature range | 15 ºC ~+80 ºC | ||||
30％~98% R.H | |||||
Temperature fluctuation | ±0.5℃ | ||||
SO2 concentration | 25 ±5 ppm | ||||
Controller | Programmable color LCD touch screen controller, Multi-language interface, Ethernet , USB | ||||
Interior material | Glass fiber reinforced plastics | ||||
Exterior material | Steel Plate with protective coating | ||||
Standard | IEC 60068-2-42 | ||||
Power & voltage | AC 380V 50HZ | ||||
Description

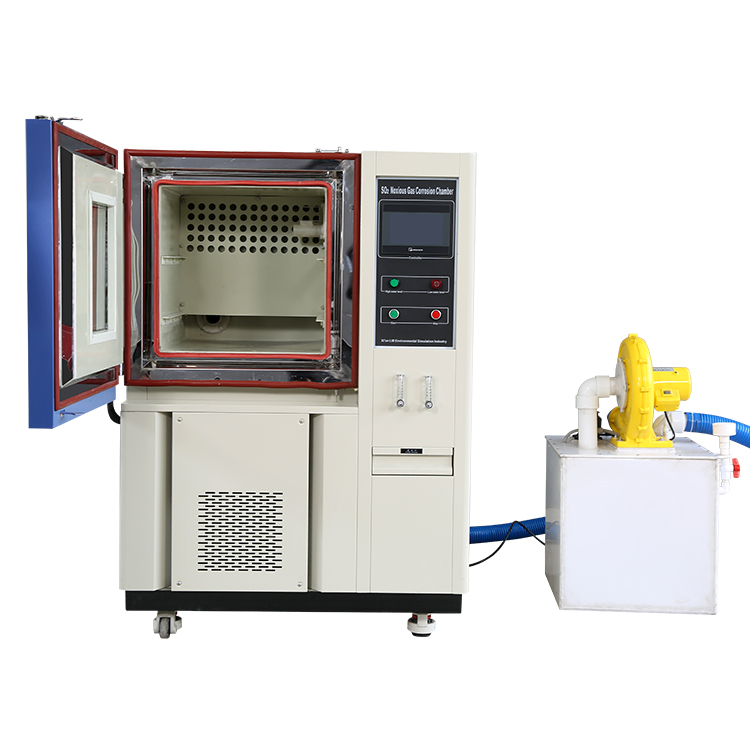

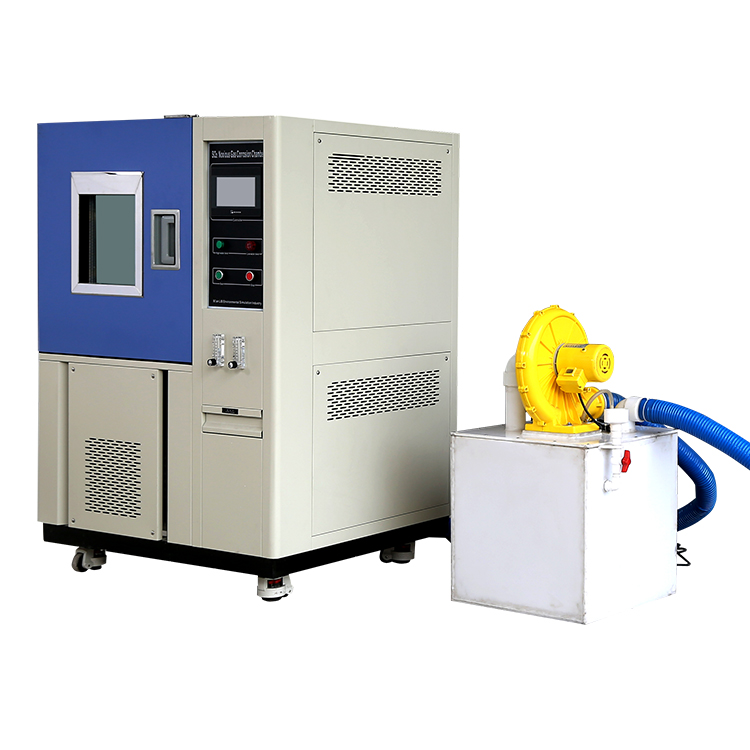

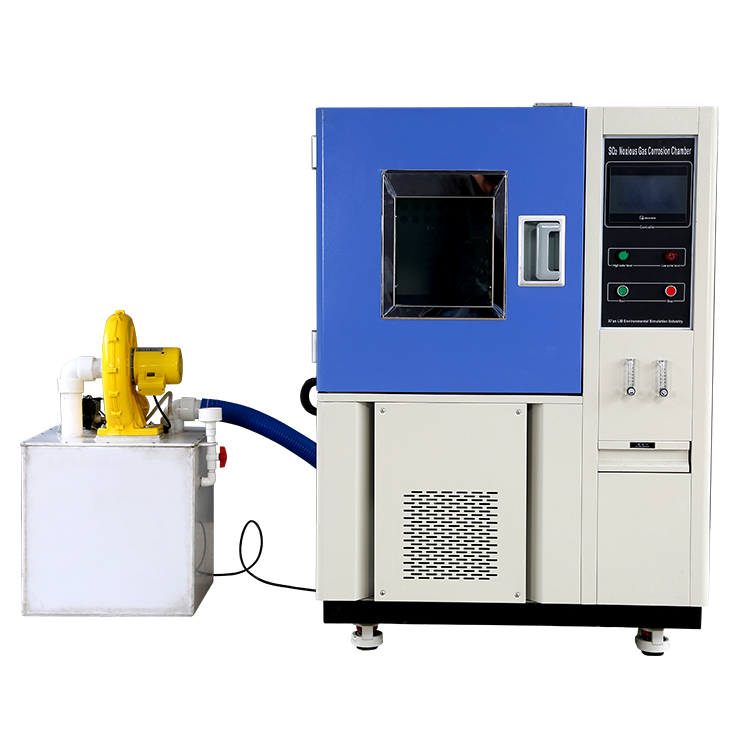

SO2 Noxious Gas Test Chambers reproduce damages by temperature, relative humidity and noxious gas Corrosion to material, components and constructions.
This noxious gas chamber can be used for single gas tests and mixed gas tests.Test methods are in accordance with IEC 60068-2-42, IEC60068-2-60 and other standards.
Features
Floor Type
Automatic measure and control gas
Temperature control and display unit
Humidity control and display unit
Test SO2 H2S CO2 HCL single gas and mixed
Programmable color LCD touch screen controller
USB and Ethernet
Electromagnetic lock to prevent door from opening under working
Air cooled refrigeration system
Casters, shelf and cable port are standard
Safety protection system
CE mark, ISO17025 calibration
| |
|
|
