| Quantity: | |
|---|---|
Model | VO-20 | VO-30 | VO-50 | VO-90 | VO-125 | |
Internal Dimension (mm) | 300x300x275 | 320x320x300 | 415x370x345 | 450x450x450 | 500x500x500 | |
Overall Dimension (mm) | 610x490x450 | 630x510x490 | 730x560x550 | 740x610x595 | 790x660x645 | |
Interior Volume | 20L | 30L | 50L | 90L | 125L | |
Parameter | Temperature Range | +35 ℃ ～+350 ℃ | ||||
Heating Rate | 6 ℃ / min | |||||
Vacuum degree | -133pa | |||||
Heating Element | Nichrome heater | |||||
Controller | Programmable color LCD touch screen controller | |||||
Ethernet connection, PC Link(Option) | ||||||
Temperature Sensor | PTR Platinum Resistance PT100Ω/MV A-class | |||||
View Window Size(mm) | 120*150 | |||||
Safety Device | Over-temperature Protection; Over-current Protection; Earth leakage Protection, Phase Sequence Protection | |||||
Material | Exterior Material | Steel Plate with protective coating | ||||
Interior Material | SUS316 stainless steel | |||||
Thermal Insulation | Polyurethane foam | |||||
Observation Window | Interior lighting, double-layer thermo stability silicone rubber sealing | |||||
Vacuum pump | Built-in vacuum connection tube and vacuum pump | |||||
Standard Configuration | 2 shelves | |||||
Power Supply | 220V 50Hz / 380V 50Hz | |||||
Maximum Noise | 65 dBA | |||||
Environmental Conditional | 5℃～+35 ℃ ≤85% RH | |||||
Description

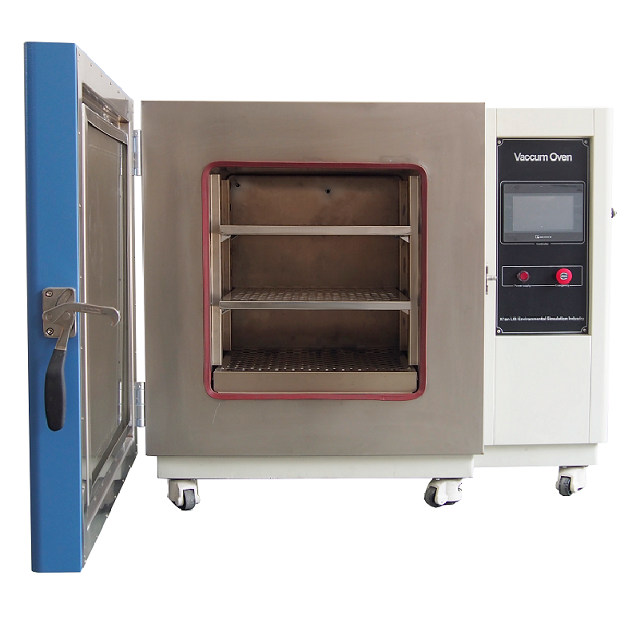

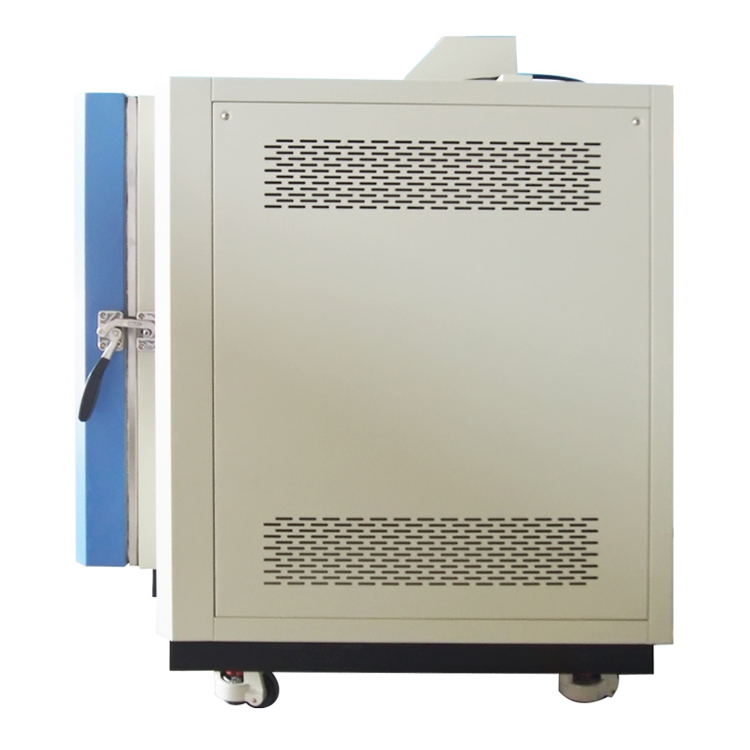

Ovens are used for high temperature drying, paint drying, drying glass and plastics, ink, and removing moisture, wood drying and high temperature tests. Applied to aerospace, automotive, electronics, metalworking.
Drying ovens are available in various sizes and temperature ranges, including standard and custom oven.
Features
Vacuum ＜133pa
Different size for selection
Temperature control and display unit
Equipped with vacuum pump
Programmable color LCD touch screen controller
Casters and shelf are standard
Safety protection system
CE mark, ISO17025 calibration
 |  |
