0-100/0-225/0-500/0-800/0-1000
Model | 0-100 | ||||||||
Internal dimensions (mm) | 400*500*500 | 500*600*750 | 700*800*900 | 800*1000*1000 | 1000*1000*1000 | ||||
Overall dimensions (mm) | 750*880*850 | 800*950*1000 | 1100*1100*1300 | 1100*1450*1400 | 1300*1400*1400 | ||||
Temperature range | Ambient ~+250 ℃; ( Ambient ~+400 ℃; Ambient ~+900 ℃) | ||||||||
Temperature fluctuations | ± 0.5 ℃ | ||||||||
Temperature deviation | ± 2.0 ℃ | ||||||||
Heating rate | About 6 ℃ / min | ||||||||
Controller | Programmable color LCD touch screen controller | ||||||||
Temperature Sensor | PTR Platinum Resistance PT100 | ||||||||
Heating system | Nichrome heater | ||||||||
Exterior material | Steel Plate with Protective coating | ||||||||
Interior material | SUS304 stainless steel | ||||||||
Timing Function | 0.1~999.9 (S、M、H) settable | ||||||||
Nominal power | 2500W | 3000W | 3500W | 4500W | 6500W | ||||
Power Supply | AC220V 50HZ | AC220V 50HZ | AC220V 50HZ | AC220V 50HZ | AC380V 50HZ |
Description

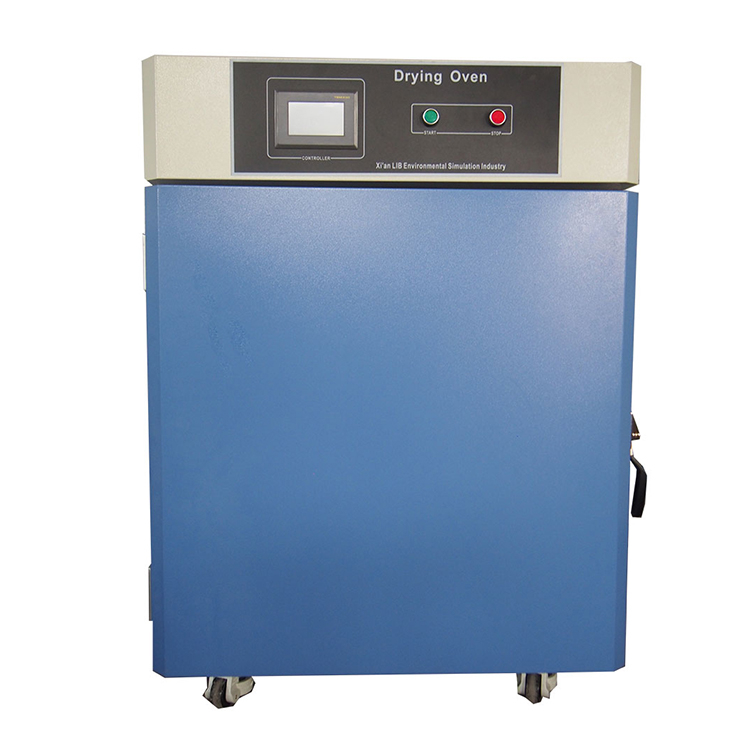

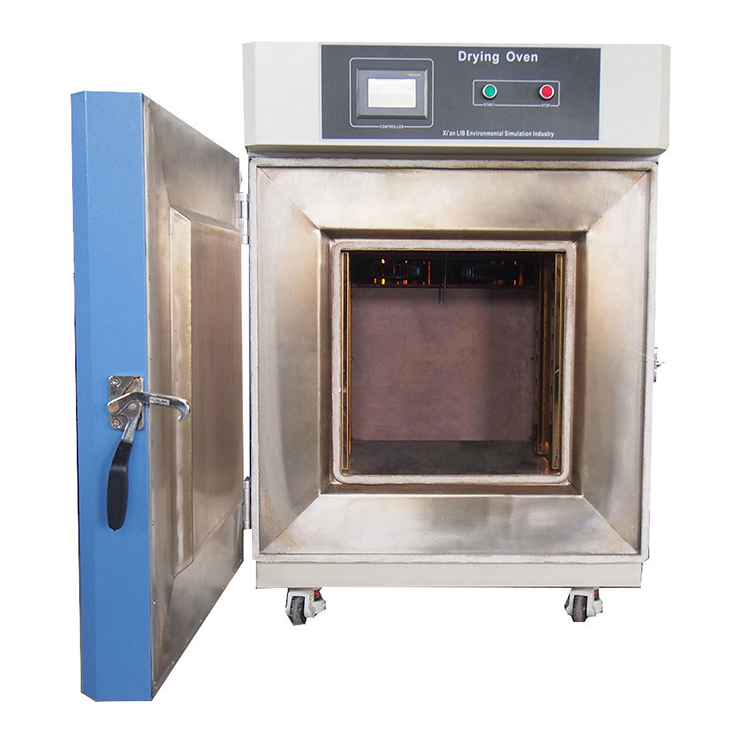

LIB designed and produced high temperature drying ovens at temperatures up to +250°C, +500°C, +800°C, +1000°C, +1200°C with small, medium and large volumes.
Ovens are used for high temperature drying, paint drying, drying glass and plastics, ink, and removing moisture, wood drying and high temperature tests. Applied to aerospace, automotive, electronics, metalworking.
Drying ovens are available in various sizes and temperature ranges, including standard and custom oven.
Features
Electric heating type
Wide temperature ranges and volume selection
Reliable performance
Temperature control and display unit
Programmable color LCD touch screen controller
USB and Ethernet
Casters and shelf are standard
Safety protection system
CE mark, ISO17025 calibration
